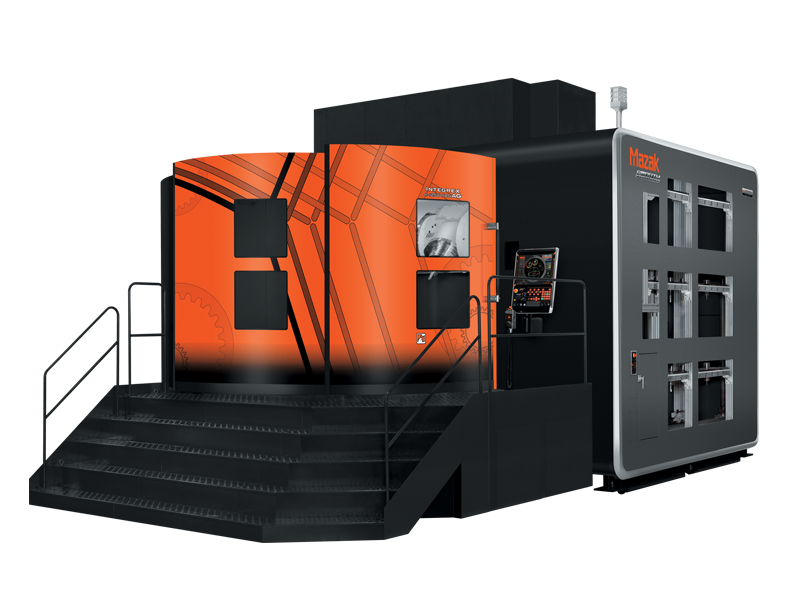

INTEGREX e-1250V/8S AG

Unlock Unprecedented Precision with the INTEGREX e-1250V/8S AG HYBRID

This Mazak multi-tasking machine is engineered for 5-axis excellence, with heavy-duty turning operations, it creates a singular solution for producing large, complex parts. As a result, it’s ideal for industries such as aerospace, heavy construction, and energy, as it handles materials like titanium, aluminum, and steel with unmatched efficiency, making it perfect for components like jet engine casings and gearboxes.

INTEGREX e-1250V/8S AG Features:

  • Produces datum features, chamfers, edges and other part features in a single setup
  • SMOOTH Gear Cutting software package with SMOOTH Gear Skiving, SMOOTH Gear Hobbing and SMOOTH Gear Milling for producing external and internal spur, helical and spline-type gears
  • SMOOTH Gear Check Plus for in-machine measuring
  • Part size range up to 59.06″ in diameter and 65.16″ high
  • Direct-drive table eliminates backlash for high accuracy machining
  • Spindle selection addresses various metal removal requirements
  • Tilting B-axis allows for full 5-axis machining
  • Tool storage capacities from 42 to 162 tools offer high flexibility
  • Tool magazine located near CNC for quick visual tooling checks
SPECIFICATION
Capacity Maximum Machining Diameter 59.060 in / 1500 mm
Maximum Machining Length 65.160 in / 1655 mm
Turning Spindle Maximum Speed 500 rpm
Milling Spindle B-Axis Travel 150°
Maximum Speed 10000 rpm
Feed Axes Travel (X Axis) 73.82 in / 1875 mm
Travel (Y Axis) 49.21 in / 1250 mm
Travel (Z Axis) 52.95 in / 1345 mm

Categories: , , Brand:

Description

INTEGREX e-1250V/8S AG is Designed for Accuracy and Efficiency

Eliminate inaccuracies and work-in-process inventory with this machine’s capability to execute milling, turning, boring, and drilling operations in single setups. This machining center features a direct-drive table design to remove backlash, and a tilting B-axis for full 5-axis machining. In addition, the spindle options are designed to meet diverse metal removal needs for high-speed and high-torque selections. As a result, it produces smooth, accurate, precise rotations across all heavy-duty cutting operations.



Seamless Gear Production with HYBRID AUTO GEAR Package

Equipped with the HYBRID AUTO GEAR (AG) package, this machine incorporates a comprehensive suite of SMOOTH TECHNOLOGY solutions for DONE IN ONE® gear production. The SMOOTH Gear Cutting software, including Gear Skiving, Gear Hobbing, and Gear Milling, facilitates the creation of external and internal spur, helical, and spline-type gears with precision. In-machine gear measuring with SMOOTH Gear Check Plus ensures each gear meets stringent quality standards.



Empower Your Production with Mazak Integrex

The INTEGREX e-1250V/8S AG HYBRID represents the zenith of Mazak’s high-performance Integrex machines. For example, the 5-axis multi-tasking capabilities ensure it’s equipped to handle complex parts manufacturing. As a result, it’s a comprehensive solution that minimizes inefficiencies to ensure manufacturing processes are streamlined and productive. In conclusion, the INTEGREX e-1250V/8S AG HYBRID is a clear choice for advancing machine shop capabilities to meet the demands of today’s challenging industry requirements.
