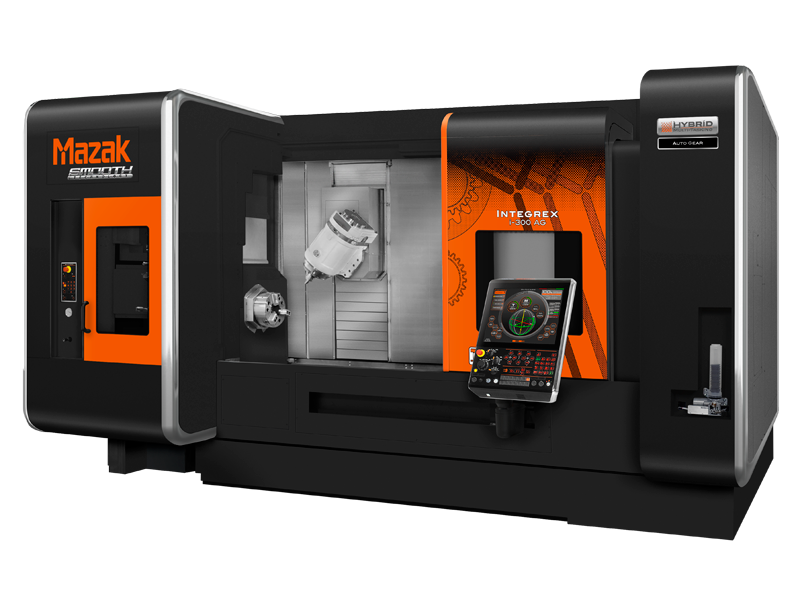

INTEGREX i-300ST AG

Unmatched Versatility and Efficiency The INTEGREX i-300ST AG HYBRID Multi-Tasking machine redefines the landscape of manufacturing by combining the power of a high-performance turning center with the extensive capabilities of a full-function machining center. This fusion enables the production of complex parts in single setups, incorporating revolutionary HYBRID functionality to streamline operations and enhance productivity.

INTEGREX i-300ST AG Features:

  • Process integration for high-accuracy machining, reduction of in-process time and initial cost
  • The INTEGREX AG Series delivers maximum versatility and enhances flexibility on the production line
  • Productive second turning spindle and lower turret for DONE IN ONE®
SPECIFICATION BED LENGTH – 1500U MM
Capacity Maximum Machining Diameter 25.910 in / 658 mm
Maximum Machining Length 59.800 in / 1519 mm
Main Spindle Maximum Speed 4000 rpm
Second Spindle Maximum Speed 4000 rpm
Milling Spindle B-Axis Travel 240°
Maximum Speed 12000 rpm
Feed Axes Travel (X Axis) 24.21 in / 615 mm
Travel (X2 Axis) 9.06 in / 230 mm
Travel (Y Axis) 10.24 in / 260 mm
Travel (Z Axis) 62.40 in / 1585 mm
Travel (Z2 Axis) 54.65 in / 1388 mm

Categories: , , Brand:

Description

Elevate Manufacturing Precision with the INTEGREX i-300ST AG HYBRID

Featuring a secondary turning spindle (S) and a lower turret (T), this multi-tasking machine’s configuration excels in minimizing fixtures, tool handling, and non-cut time. In addition, the HYBRID AUTO GEAR (AG) package encompasses a broad spectrum of SMOOTH TECHNOLOGY solutions for efficient and precise DONE IN ONE® gear production. As a result, this machine features everything manufacturers need to optimize their workflow and reduce lead times.



Advanced Capabilities for Precision and Speed

The INTEGREX i-300ST AG HYBRID streamlines manufacturing processes to eliminate the need for multiple setups for better accuracy and lead time. It can easily handle fully prismatic parts from solid blocks or castings, and round or sculptured components. In addition, the cutting-edge technology and multi-tasking capabilities make it ideal for industries that require high-performance and complex parts, such as aerospace and automotive.

The SMOOTH Gear Cutting software package underscores the 5-axis machining center’s role as a pivotal tool in modern manufacturing environments. In addition, the machine’s comprehensive design, ensures that manufacturers are equipped to help their precision manufacturing applications evolve the industry. The INTEGREX i-300ST AG HYBRID is a future-proof solution that maintains the highest standards for accuracy and precision
