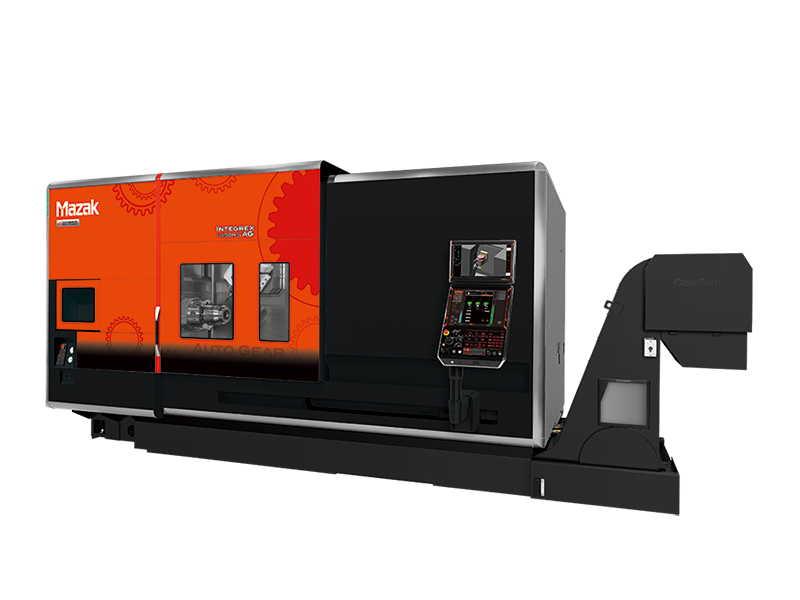

INTEGREX i-350H ST AG

The INTEGREX i-350H ST AG HYBRID Multi-Tasking machine is specifically engineered to handle the complexities of medium to large parts with versatility and efficiency. This advanced Mazak CNC machine merges the robust power of a high-performance turning center with the comprehensive functionalities of full-function machining to produce intricate parts in streamlined single setups.

INTEGREX i-350H ST AG Features:

  • Process integration for high accuracy machining, reduction of in-process time and initial cost
  • Quickly and easily makes programs for cutting tool paths and measurement
  • Produces datum features, chamfers, edges and other part features in a single setup
  • SMOOTH Gear Cutting software package with SMOOTH Gear Skiving, SMOOTH Gear Hobbing and SMOOTH Gear Milling for producing external and internal spur, helical and spline-type gears
  • MX Hybrid Roller Guide System damps vibration to extend tool life and handle higher load capacities
  • Milling spindle provides a rotating B-axis range of 240 degrees
  • 38-tool magazine standard, with additional tool options available
  • Accommodates parts up to 26.378″ (670 mm) in diameter
SPECIFICATION BED LENGTH – 1500U MM
Capacity Maximum Machining Diameter 670 mm
Maximum Machining Length 1519 mm
Main Spindle Maximum Speed 4000 rpm
Second Spindle Maximum Speed 4000 rpm
Milling Spindle B-Axis Travel 240°
Maximum Speed 12000 rpm
Feed Axes Travel (X Axis) 695 mm
Travel (X2 Axis) 220 mm
Travel (Y Axis) 300 mm
Travel (Z Axis) 1585 mm
Travel (Z2 Axis) 1539 mm

Categories: , Brand:

Description

Unrivaled Productivity on the INTEGREX i-350H ST AG

This machine features a sophisticated configuration with a second turning spindle (S) and a lower turret (T). As a result, it reduces fixtures, tool handling, and non-cut time, optimizing the entire manufacturing process. In addition, the integration of the HYBRID AUTO GEAR (AG) package provides a complete suite of SMOOTH TECHNOLOGY solutions. This enables DONE IN ONE® gear production that redefines manufacturing efficiency.



Precision Engineering for Advanced Applications

This machine’s comprehensive 5-axis capability facilitates precise machining on fully prismatic parts from a variety of materials. For example, it can easily machine solid blocks, castings, and complex aerospace or automotive components. This Mazak 5-Axis Integrated Machining Solution epitomizes the ultimate in 5-axis functionality. As a result, it enables manufacturers to streamline operations, boost productivity, and achieve superior part quality. By offering a powerful combination of efficiency, precision, and innovation, it propels CNC machine shops to new heights in the competitive landscape of complex parts production, ensuring they remain at the forefront of technological advancements in integrated machining processes.

The INTEGREX i-350H ST AG HYBRID is more than just a machine; it’s a comprehensive solution designed to meet the evolving demands of modern manufacturing. With its blend of cutting-edge machining capabilities, it offers manufacturers a powerful tool to achieve efficiency, precision, and innovation, propelling them to new heights in the competitive landscape of complex parts production.
