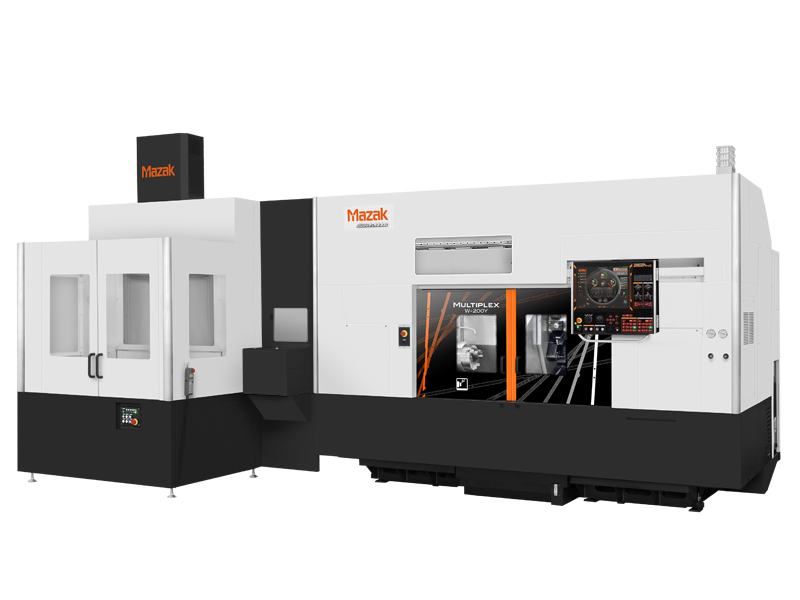

MULTIPLEX W-200Y

Accelerating Precision

This multi-tasking CNC turning center sets a new benchmark in DONE IN ONE® part processing speed. The MULTIPLEX W-200Y was engineered to reduce part loading/unloading times by approximately 20 percent and to minimize chip-to-chip times. In addition, its rack-and-pinion type gantry loader is significantly better than traditional belt-driven systems. As a result, this high-performance Mazak Multiplex CNC center enhances efficiency and productivity in modern machine shops.

MULTIPLEX W-200Y Features:

  • Dual-spindle/dual-turret with milling tools and Y-axis capability
  • Center partition allows use as two separate machines
  • High accuracy and high speed workpiece transfer
  • Large window for excellent visibility of machine operation
  • Moveable CNC operation panel for operator ease of use
  • Easy conversational programming of multiple surface machining
  • MTConnect® ready for convenient networking
  • Ergonomic design for convenient operation and maintenance
  • Advanced programming functions available for ease-of-use and ensures high-speed, accurate machining
  • Rack-and-pinion gantry loader shortens part loading/unloading times
  • New double wedge design offers superior chip disposal
SPECIFICATION
Capacity Maximum Swing 12.60 in / 320 mm
Maximum Machining Diameter 12.600 in / 320 mm
Maximum Bar Work Capacity 2.6 in / 65 mm
Maximum Machining Length 7.090 in / 180 mm
Main Spindle Chuck Size 8 in
Maximum Speed 5000 rpm
Motor Output (40 ED Rating) 20 hp / 15 kw
Second Spindle Chuck Size 8 in
Maximum Speed 5000 rpm
Motor Output (40 ED Rating) 20 hp / 15 kw
Turret (Upper) Number of Tools 24
Maximum Speed 5000 rpm
Motor Output (40 ED Rating) 6 kw
Feed Axes Travel (X Axis) 10.75 in / 275 mm
Travel (Y Axis) 3.94 in / 100 mm
Travel (Z Axis) 19.13 in / 490 mm
Travel (Z2 Axis) 20.63 in / 525 mm

Categories: , Brand:

Description

Mazak Multiplex W-200Y – Dual Capability for Maximum Flexibility

This Mazak CNC multi-tasking center is designed for single-setup, mid to high volume production, and continuous operation. The Multiples W-200Y incorporates dual spindles and dual turrets, with milling tools and Y-axis capability. As a result, it integrates milling and turning for unparalleled flexibility in part processing. With both spindles delivering identical performance, manufacturers can tackle a wide range of production demands without sacrificing speed or precision. This machine also features a distinctive center partition, which enables it to function as two separate machines. By doubling the utility, machinists can optimize their workflow for efficiency and productivity.



Mazak Multiplex Features for Complex Part Production

The MULTIPLEX W-200Y integral spindles have full 360-degree circumferential clamping to enhance C-axis indexing accuracy. In addition, it features a movable CNC operation panel, and a generously sized window to give machinists a comfortable and efficient position to oversee machine functions. It also has user-friendly conversational programming to streamline setups for machining multiple surfaces. This makes complex tasks more manageable and significantly cuts down on setup times. The MULTIPLEX W-200Y is a user-centric, high-efficiency CNC machining center, fully equipped to address the multifaceted demands of contemporary manufacturing settings. With its comprehensive suite of advanced features designed to optimize precision, ease of use, and operational efficiency, the Mazak MULTIPLEX W-200Y is ready to elevate productivity and performance standards in the modern manufacturing landscape.
