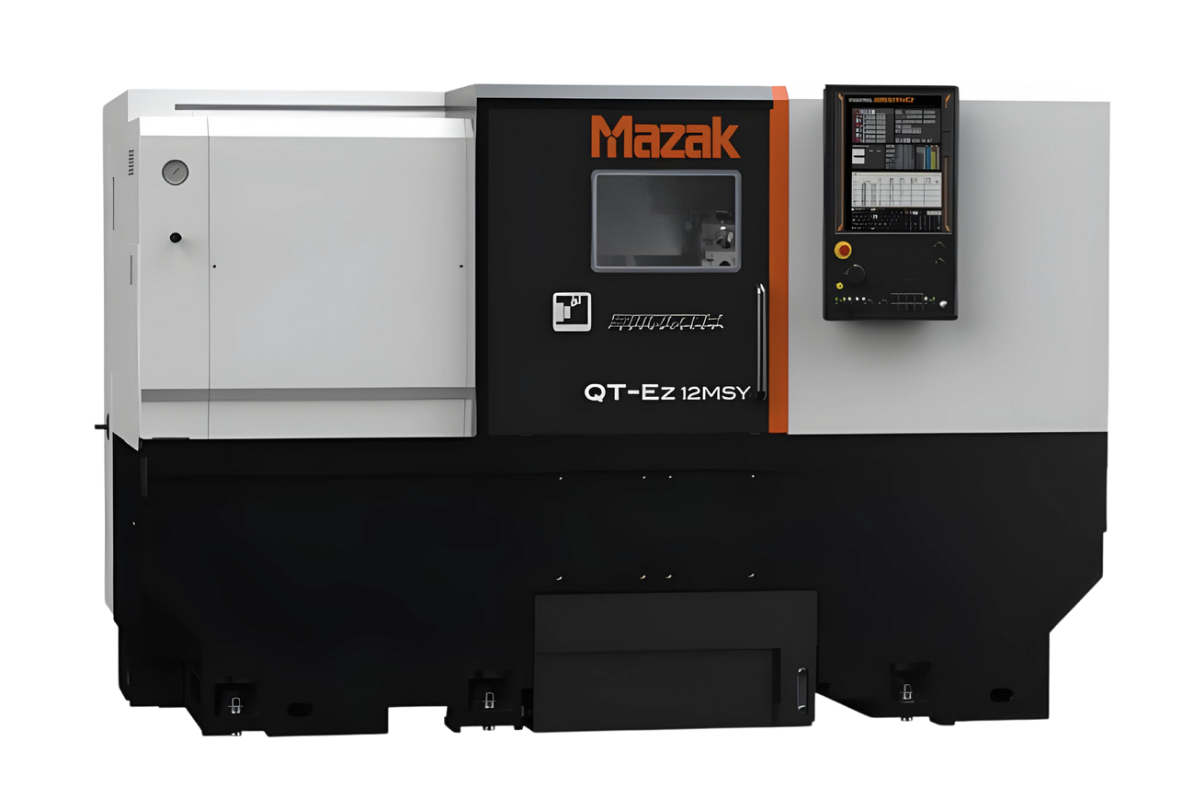

QT-Ez 12MSY

Mastering Multi-Tasking with Mazak

Manufactured in Kentucky, the QT-Ez 12MSY multi-tasking CNC turning center redefines accessibility with renowned reliability and groundbreaking innovation. It’s also made to integrate seamlessly into any shop environment with its a sleek, space-efficient design. Featuring a 12″ chuck and an integral-motor spindle, the QT-Ez 12MSY ensures superior handling of diverse materials across various industries. It’s also enhanced with advanced milling capabilities, Y-axis functionality, and an additional turning spindle for DONE IN ONE® operations.

QT-Ez 12MSY Features:

  • Powerful and reliable integral motor headstock designs.
  • Rotary tooling (M) and Y-axis off-centerline machining (Y) for Multi-Tasking processing.
  • High-production second spindle (S) for DONE IN ONE part processing.
  • Hybrid MX Roller Guide System improves rigidity, accuracy and reliability.
  • Pre-tensioned ball screw systems with support at each end.
  • 12 position drum turret (bolt on type) for rotary tool applications.
  • Tailstock options include a manual position with hydraulic quill or servo positioning capability.
  • Seamless integration of bar feeders and robots for unattended operations.
SPECIFICATION BED LENGTH – 20 IN
Capacity Maximum Swing 27.40 in / 695 mm
Maximum Machining Diameter 13.500 in / 342 mm
Maximum Bar Work Capacity 3.0 in / 77 mm
Maximum Machining Length 21.259 in / 539 mm
Main Spindle Chuck Size 12 in / 305 mm
Maximum Speed 3300 rpm
Motor Output (3 minute rating) 30.0 hp / 22 kw
Second Spindle Chuck Size 6 in / 152 mm
Maximum Speed 6000 rpm
Motor Output (30 minute rating) 15.0 hp / 11 kw
Turret (Upper) Number of Tools 12
Maximum Speed 6000 rpm
Motor Output (3 minute rating) 10.0 hp / 8 kw
Feed Axes Travel (X Axis) 8.50 in / 215 mm
Travel (Y Axis) 4.00 in / 100 mm
Travel (Z Axis) 23.75 in / 605 mm
Travel (W Axis) 23.00 in / 585 mm

Categories: , Brand:

Description

Automation-Enhanced Productivity on the QT-Ez 12MSY

These compact multi-tasking Mazak QT-Ez machines are tailored for high-efficiency production with automation solutions. For example, this machine seamlessly integrates with bar feeders and robots for lights-out production. This enables a continuous manufacturing process to reduce downtime and increase manufacturing capacity for higher volume production without compromising on precision or quality. As a result, machine shops that invest in the Mazak QT-Ez series for optimal performance can significantly boost output while upholding exceptional quality.



Precision Programming with MAZATROL SmoothEz CNC

The QT-Ez 12MSY is powered with the advanced MAZATROL SmoothEz CNC system, offering an expansive range of programming capabilities. This Mazatrol suite includes comprehensive MAZATROL conversational programming and EIA/ISO compatibility. Is also has QUICK MAZATROL software to streamline part-program creation and MAZATROL TWINS for optional offline programming. In addition, the SMOOTH Machining Configurator (SMC) enables real-time optimization of cutting parameters, while the Intelligent Thermal Shield (ITS) ensures thermal stability. These features enhance the machine’s reliability and the quality of produced parts.



Elevating Shop Capabilities with the QT-Ez 12MSY

The QT-Ez 12MSY consolidates a wide array of machining processes into a single, efficient operation. As a result, machine shops can maintain continuous production with minimal downtime to remain competitive in the industrial manufacturing industry. This Mazak multi-tasking machine combines a compact design, multi-tasking efficiency, and automation compatibility. As a result, it reduces production times and costs, while increasing precision, profitability, and part quality, making it a great asset for future growth.
