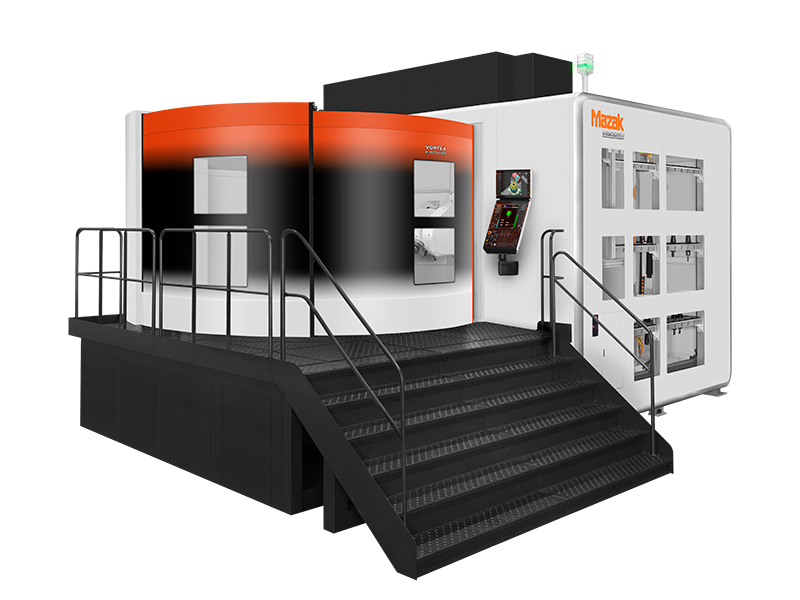

VORTEX e-1600V/10S

Perfect for job shops as well as aerospace and heavy construction part manufacturers, the single-table VORTEX e-1600V/10S machining center fuses together the capabilities of a full simultaneous 5-axis machine with those of a vertical turning center to easily handle large, highly complex components from aluminum, steel and high-temperature alloy materials.

The machine comes with a two-pallet changer that provides unattended operations and off-cycle part setup. This simple, efficient form of automation allows operators to load, unload and inspect parts on one pallet while the machine works on the other undisturbed.

VORTEX e-1600V/10S Features:

  • Direct-drive table eliminates backlash for high accuracy machining
  • Spindle selection addresses various metal removal requirements
  • Tilting B-axis allows for full 5-axis machining
  • Powerful turning spindle delivers heavy-duty performance
  • Large tool storage capacities offer high flexibility
  • Tool magazine located near operating area for convenient tool setup
Capacity Maximum Workpiece Diameter 90.550 in / 2300 mm
Maximum Workpiece Height 66.290 in / 1684 mm
Spindle Spindle Taper BT50
Maximum Speed 10000 rpm
Magazine Number of Tools 42
Rotary Axes Spindle Tilt (B axis) 150 degrees
Table Indexing (C axis) 360.0000 degrees
Feed Axes Travel (X Axis) 85.24 in / 2165 mm
Travel (Y Axis) 62.99 in / 1600 mm
Travel (Z Axis) 52.95 in / 1345 mm
