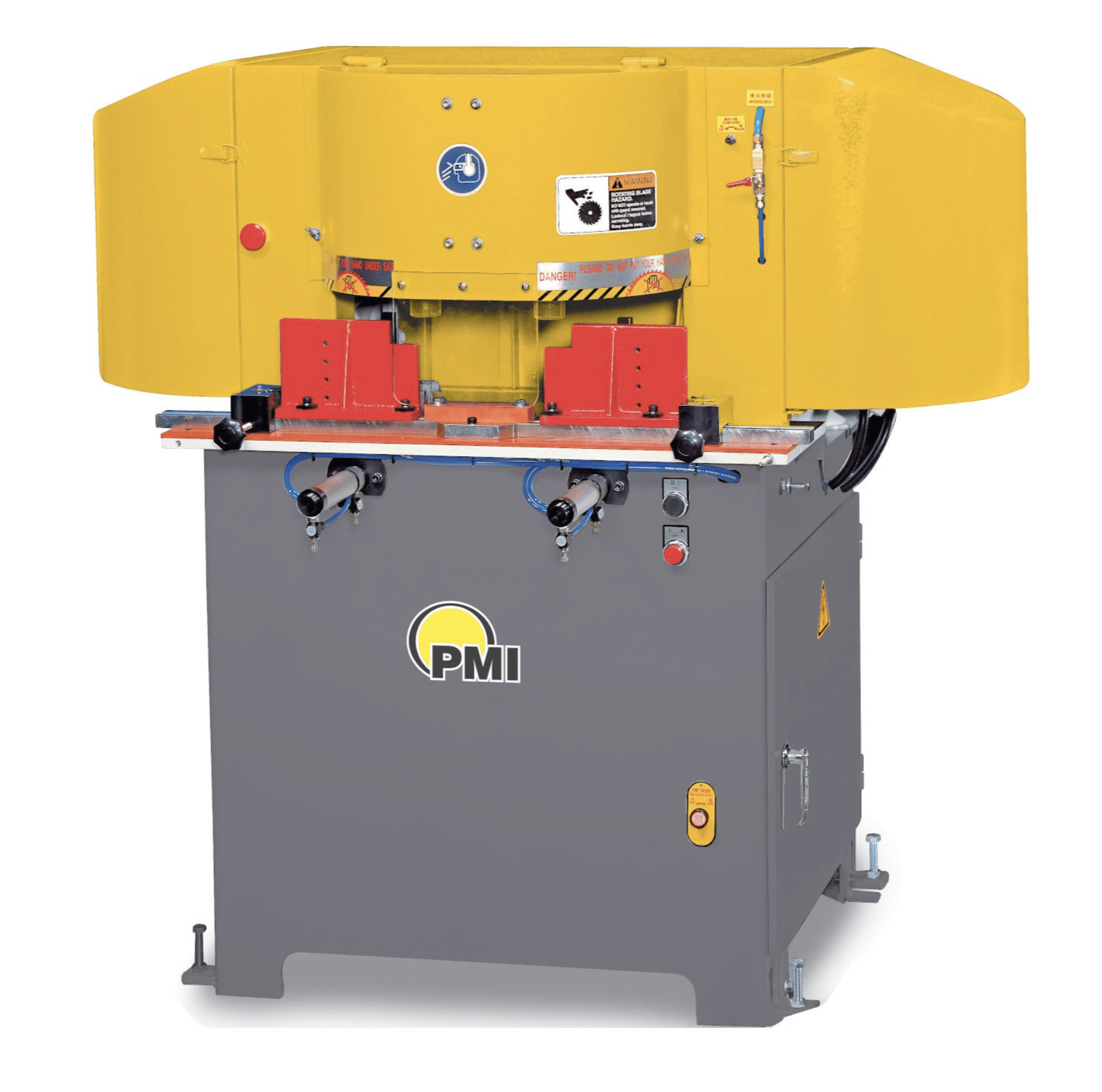

Preparing aluminum extrusions for corner joints often requires more control than a standard cutoff operation can provide. The PMI-14 CV-Type Notching Saw is built specifically for this work, combining opposing 45° cutting geometry with adjustable notch depth to remove material where profiles need to intersect or join. Its dedicated configuration gives fabricators a practical way to produce consistent notches in aluminum framing and extrusion components without relying on multiple manual cutting operations.
PMI-14 CV-Type Notching Saw Features:
The PMI-14 CV-Type is an aluminum corner notching saw developed for profiles that need material removed before joining or assembly. Its dedicated cutting arrangement allows fabricators to create repeatable notch geometry in aluminum framing and extrusion components rather than producing the required shape through several separate saw cuts.
Not every extrusion requires the same amount of material removal. The adjustable depth aluminum notching saw allows the cutting depth to be set for the profile and joint being produced, providing greater flexibility when moving between different extrusion shapes. This control is particularly useful when the notch must stop at a specific point rather than pass completely through the workpiece.
The 45 degree extrusion notch saw uses angled cutting geometry to prepare aluminum profiles for corner and intersecting joints. By maintaining the required cutting orientation within a dedicated machine, the PMI-14 CV-Type helps keep notch geometry consistent across recurring components while reducing the manual setup associated with producing these cuts on a general-purpose saw.
| Specification | Value |
| Machine Type | Semi-automatic aluminum notching saw |
| Saw Head Arrangement | Two heads fixed at 45° |
| Notch Depth Control | Adjustable front fence |
| Saw Motors | 2 HP x 2 |
| Blade Diameter | 14 in x 2 |
| Blade Speed | 3,200 RPM |
| Maximum Width | 3.5 in |
| Maximum Material Height | 7 in |
