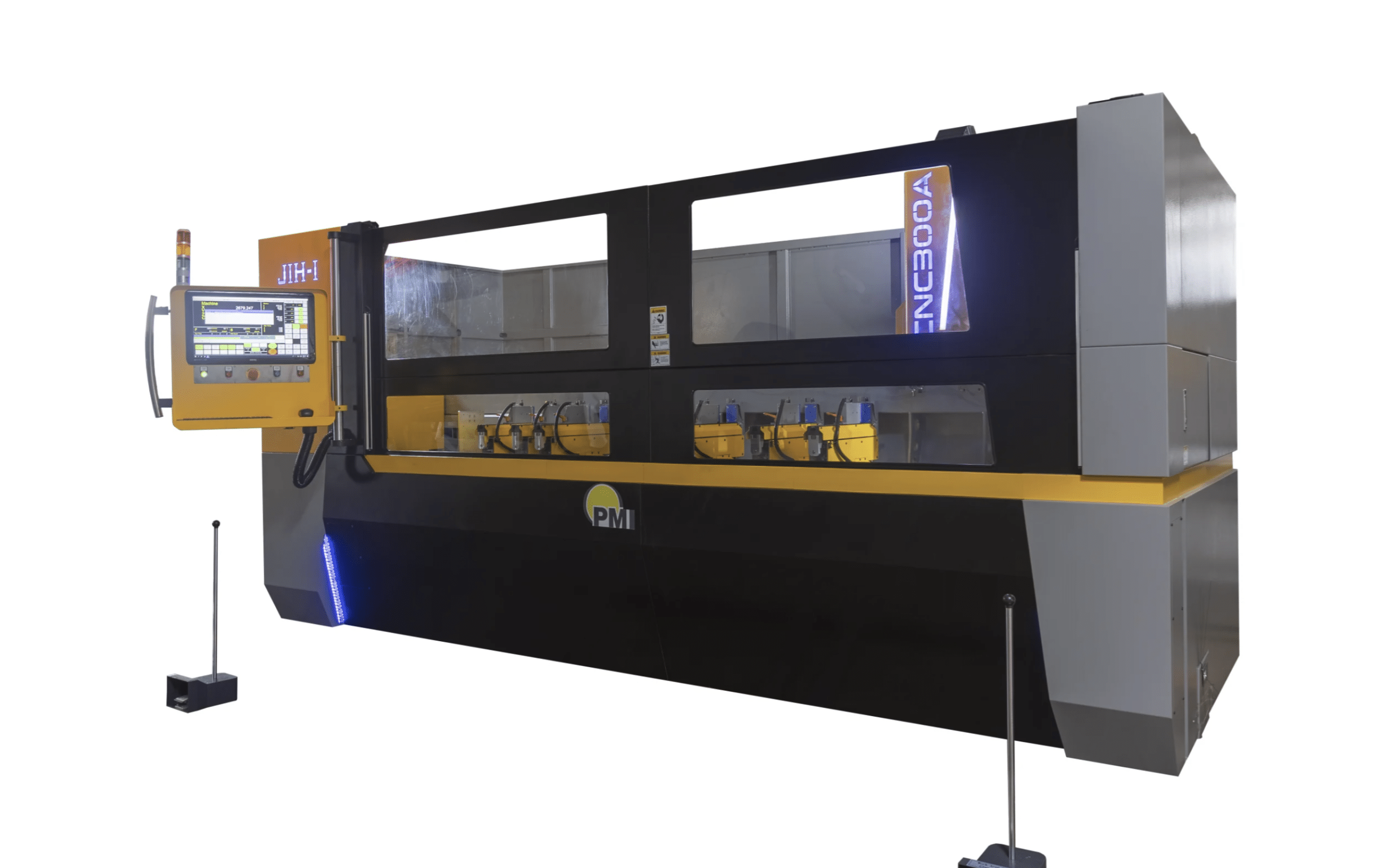

Drilling, milling, and routing aluminum extrusions on separate machines can add handling and setup time between operations. The PMI-CNC 300A brings these processes into a 3-axis CNC platform built specifically for profile machining. A high-speed spindle supports detailed machining of nonferrous material, while the machine’s 3-meter working length provides room for long extrusion components used in fabrication and assembly applications.
PMI-CNC 300A 3-Axis Profile Machining Center Features:
The PMI-CNC 300A is a 3-axis aluminum profile machining center built to perform controlled milling, drilling, and routing operations on extruded sections. Bringing these processes into a CNC platform reduces the need to move a profile between separate machines for each feature and provides programmable control over recurring hole patterns, slots, pockets, and other machined details.
A spindle speed reaching 25,000 RPM gives the 25000 RPM aluminum extrusion machining center the high-speed cutting capability needed for aluminum and other nonferrous profiles. The spindle allows smaller cutting tools to operate effectively when machining detailed features, helping the 300A handle work that extends beyond basic drilling or cutoff operations.
The 3 meter CNC profile mill provides a working length suited to long aluminum extrusions and fabricated profile components. CNC positioning allows multiple features to be machined along the workpiece from a programmed setup, making the platform useful when holes, slots, pockets, or other details must be placed at defined locations along an extended section.
| Specification | Value |
| X-Axis Travel | 118 in (3 m) |
| Y-Axis Travel | 11.81 in (300 mm) |
| Z-Axis Travel | 11.81 in (300 mm) |
| Spindle Speed | 25,000 RPM |
| Spindle Motor | 4 HP |
| Tool Holder | ER32 |
| Controlled Axes | 3 |
