| Model | HQR-200/3 NEO |
|---|---|
| Chuck Size | |
| Max Workpiece Diameter | 12.6" |
| Max Machining Length | 33.86" |

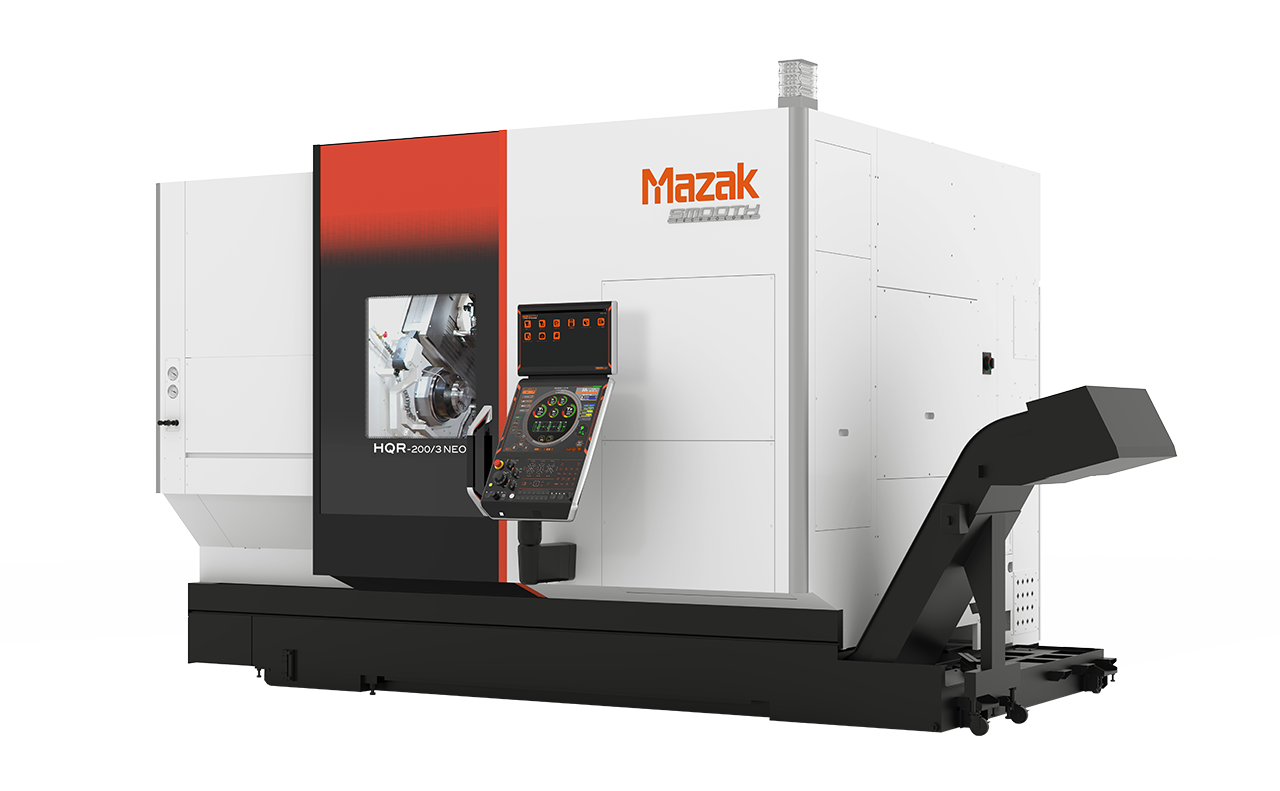

The Mazak HQR-200 NEO is a high-performance turning CNC machine built to meet the demands of modern manufacturing. With dual spindles and dual turrets, it supports full 4-axis machining to deliver maximum productivity. In addition, its advanced multi-channel CNC system enables simultaneous operation across axes, which reduces cycle times and increases throughput—especially for applications requiring high-precision CNC turning on complex geometries.
The HQR-200 NEO’s multi-channel CNC system allows both spindles and turrets to operate at the same time. This capability reduces idle time, improves part consistency, and ensures higher output per shift. By combining stability with speed, it enables efficient machining for industries that require tight tolerances and repeatable results.
Equipped with Mazatrol SmoothG control, the HQR-200 NEO simplifies complex programming while improving processing speed. Operators benefit from conversational programming, real-time monitoring, and optimized tool paths, all of which shorten setup times. Backed by its rigid design and dual-turret layout, the machine consistently delivers the precision required for high-precision CNC turning.
| Model | HQR-200/3 NEO |
|---|---|
| Chuck Size | |
| Max Workpiece Diameter | 12.6" |
| Max Machining Length | 33.86" |
| Universal | Universal type | 850U |
|---|---|---|
| Spindle | Chuck size | 8 “ |
| Max. spindle speed | 5000 rpm | |
| Max. torque (25%ED) | 344 ft-lbs | |
| Spindle motor (30 min. rating) | 22 kW (30 HP) | |
| Spindle motor (cont. rating) | 15 kW (20 HP) | |
| Second spindle | Chuck size | 8 “ |
| Max. spindle speed | 5000 rpm | |
| Spindle motor (30 min. rating) | 22 kW (30 HP) | |
| Spindle motor (cont. rating) | 15 kW (20 HP) | |
| Upper and lower turret | Tool storage capacity | 12 |
| Tool shank height | 1 “ | |
| Boring bar shank diameter | Φ2 “ | |
| Rotary tool spindle | Max. spindle speed | 6000 rpm |
| Max. torque (3 min. rating) | 26 ft-lbs | |
| Spindle motor (10 min. rating) | 5.5 kW (7.5 HP) | |
| Spindle motor (cont. rating) | 2.2 kW (3 HP) | |
| Travel | X-axis(Upper turret / Lower turret)* | 8 ” / 8 “ |
| Y-axis (upper turret / lower turret) | 4″ (±2″) / 4″ (±2″) | |
| Z-axis (upper turret / lower turret) | 24 ” / 32 “ | |
| Rapid traverse rate | X-axis (upper turret / lower turret) | 1181 IPM / 1181 IPM |
| Y-axis (upper turret / lower turret) | 1024 IPM / 787 IPM | |
| Z-axis (upper turret / lower turret) | 1417 IPM / 1417 IPM | |
| Machine size | Width × Length (MAZATROL SmoothG) | 138 ” × 109 “ |
| Height | 100 “ | |
| Machine weight | 34832 lbs |
* Travel of left upper turret. Travel of the right upper turret is 253 mm.
