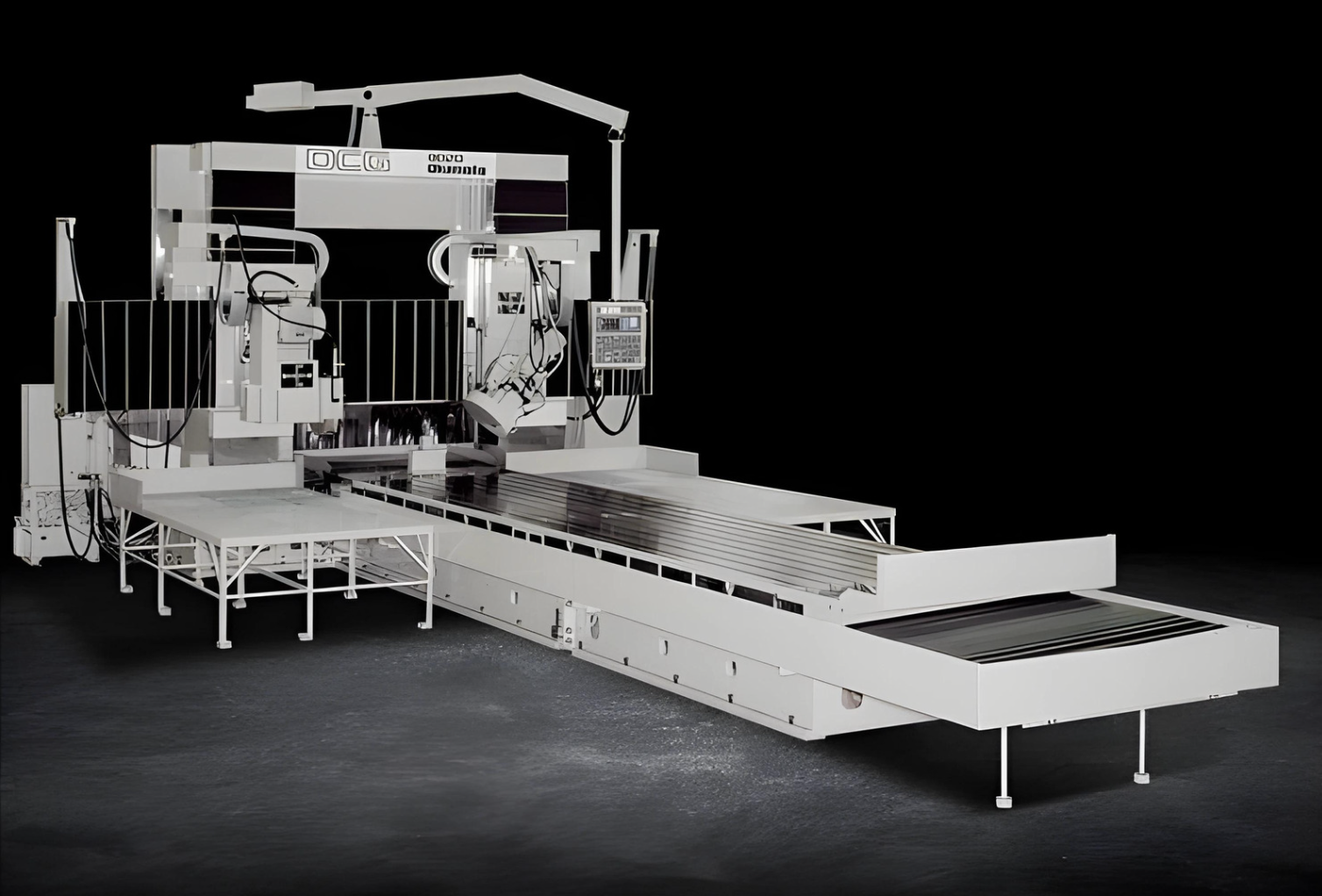

DCG Series
DCG Series grinders deliver the grinding versatility and capacity to precisely grind extremely large components. Dual grinding wheels provide for a wide range of grinding applications to minimize large work set-up.
- Heavy-Duty double column design and construction.
- Versatile – two grinding wheels allow grinding of compound guideways and surfaces.
- CNC controlled Universal Spindle
- 0.00001″ Infeed capability
- Fully automatic grinding and dressing cycles.
SPECIFICATIONS
DCG Series Double Column Grinders
6 Sizes available
52″ x 158″ to 78″ x 394″
- Table Working Area W x L:
- 52″ x 158″ to 78″ x 394″
- Distance from Grinding Wheel to Table surface:
- 49″ to 63″*
- Grinding Wheel:
- 24″ x 4″ x 12″
- Grinding Wheel Spindle:
- 20 hp
- Floor Space:
- 44′ x 24′ x 20′” to 84″ x 28″ x 22′ *
- Weight:
- 162,000 to 255,000 lbs *
- *depending on model
STANDARD & OPTIONAL ACCESSORIES
Standard Accessories
- Grinding Wheels
- Wheel Adapters
- Fanuc NC Control
- Dresser Stand with Diamond Tool
- Work Light
- Leveling Blocks
- Necessary Tools & Tool Box
Optional Accessories
- Coolant System with Magnetic Dust Separator
- Coolant System with Magnetic Dust Separator and Paper Filter System
- Electro Magnetic Chuck
- Grinding Wheel Balancing Stand w/Arbor
- Automatic Wheel Balancer
- Crowning System
- 30 hp Wheel Spindle Motor
