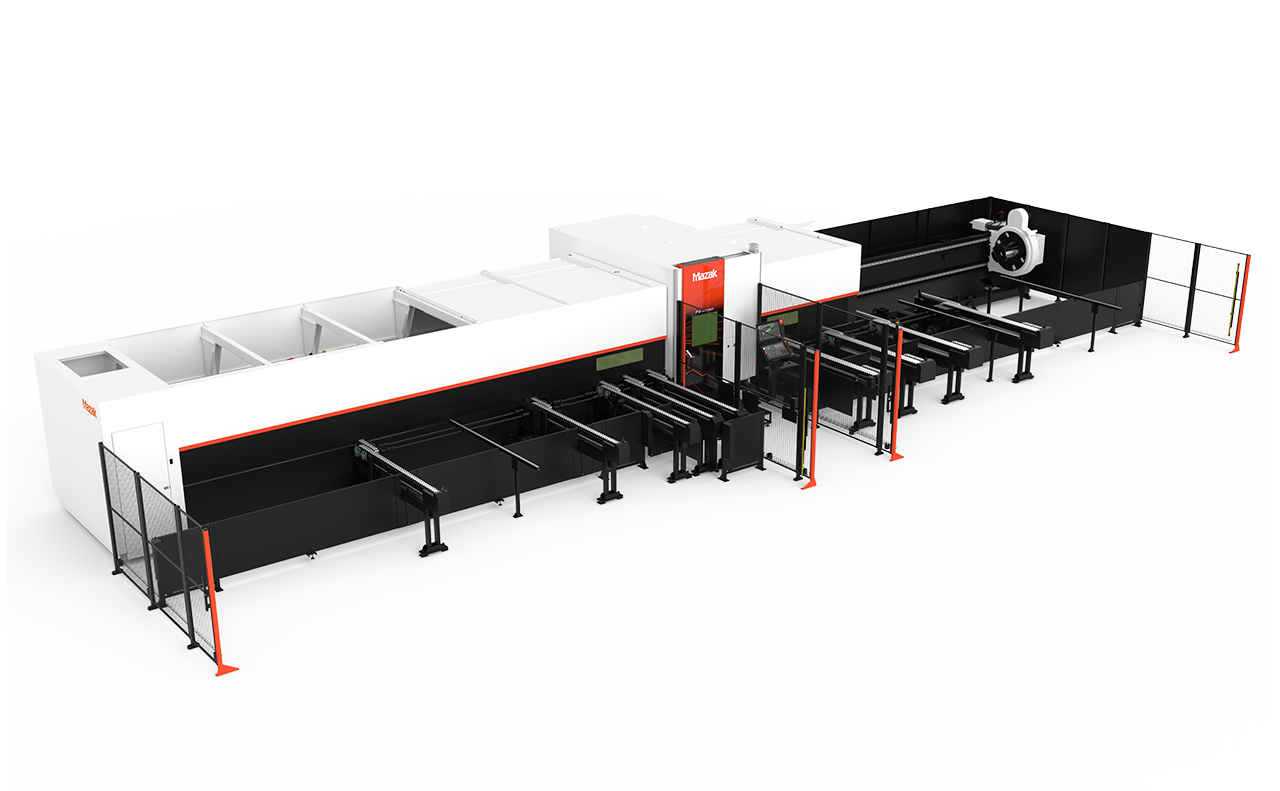

FG-400 NEO

Designed to provide automatic and continuous 3D laser cutting of tube, pipe, and structural material with advanced technology for higher productivity and efficiency than conventional laser-cutting systems. The 3D cutting head maximizes flexibility and range of movement to expand possible applications. By adjusting beam shape/diameter offers, users have more control during the cutting process. The machine automatically adjusts beam diameter to accommodate the cutting of various materials and thicknesses. The FG-400 NEO is also equipped with beam shaping technology to control power density of where the laser beam is concentrated. A four-chuck work support system also extends the machine’s capabilities and prevents material distortion during processing. Additional equipment enables high accuracy cutting of heavier material with larger diameters and lengths.

PERFORMANCE ADVANTAGES

• SPACE GEAR MARK II is an affordable all-in-one laser center. Use its triple-mode, 6-axis capabilities to expand your shop’s horizons and raise yourself above the competition.
• 2D mode is for flat sheet and plate up to .87″ thick.
• 3D mode makes use of our compact cutting head with ±360° rotation in the A-axis and ±135° in the B-axis to maintain a normal cutting angle to all preformed sculptured surfaces. A non-contact profiler maintains a constant stand-off distance and eliminates marring of the part.
• Tubes, pipes, and structural shapes can all be processed by adding a CNC rotary chuck and supports for long workpieces. In all, six axes of CNC control allow you to cut weld preps, angled features, and much more in a single setup.
• Reduced secondary processes such as bending, welding, assembly, etc.

• Cut heavier material with larger diameters and lengths with better accuracy.
