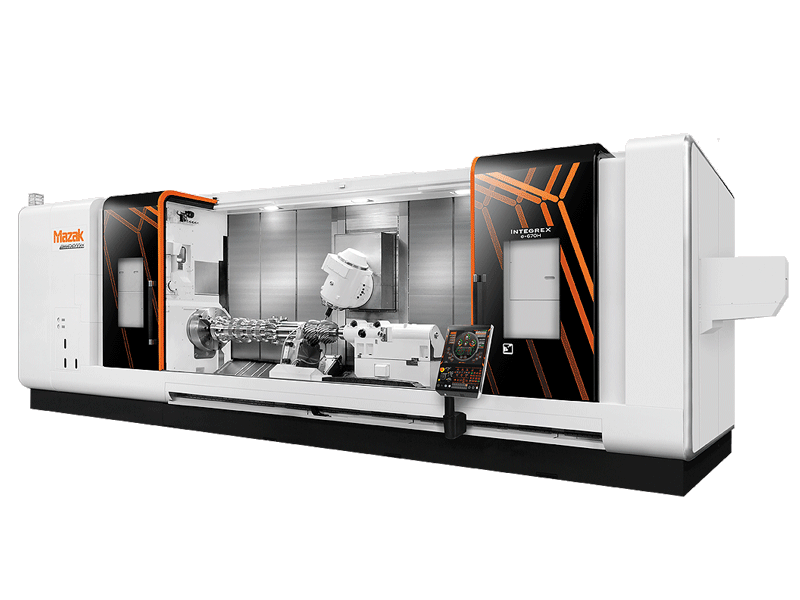

The Integrex e-670H multi-tasking machines blend the functions of a CNC turning center with a machining center. As a result, operators can perform turning, milling, boring, and drilling within a single setup. Mazak optimized this machine to produce heavy, large-diameter, shaft-type workpieces with precision and performance.
Integrex e-670H Features:
| Model | INTEGREX e-670H, INTEGREX e-670H-S |
|---|---|
| Chuck Size | |
| Max Workpiece Diameter | 42.13" |
| Max Machining Length | 122.91", 162.91", 242.91" |
$1.00
The Mazak Integrex e-670H is a high-performance CNC machine with twin spindle capability, designed for large, heavy-duty components. It combines turning, milling, and boring operations in a single setup to reduce part transfers and keep tight tolerances. In addition, its large turning diameter, extended bed length, and rigid structure make it ideal for aerospace structures, oilfield equipment, and large transportation components. The spindle options support both high-torque and high-speed applications. It also features an extended Y-axis travel, which allows deep cavity milling and off-center operations, giving engineers flexibility in part programming and setup. For teams running contract manufacturing machines, this Mazak machining center delivers repeatability and process stability for high-volume, complex part production.
Mazak’s SmoothAi CNC Control improves programming efficiency, simulation accuracy, and adaptive machining performance. This interface simplifies production and reduces cycle times. As a result, the Integrex e-670H integrates seamlessly into modern CNC machining systems, supporting scalable cells and consistent workflow management. It also pairs effectively with twin-spindle configurations for synchronized operations. This setup enables dual-part processing and simultaneous machining—critical for job shops that need to maximize throughput and meet tight delivery schedules.
The Integrex e-670H gives manufacturers a clear path to upgrading legacy equipment with smarter, more capable technology. Its design supports high-torque cutting, heavy metal removal, and full automation integration. In conclusion, this machine offers the strength, speed, and scalability required for today’s most demanding production environments.
| Model | INTEGREX e-670H, INTEGREX e-670H-S |
|---|---|
| Chuck Size | |
| Max Workpiece Diameter | 42.13" |
| Max Machining Length | 122.91", 162.91", 242.91" |
| Bed length | Bed length type | 3000U |
|---|---|---|
| Main spindle | Max. spindle speed | 1600 rpm |
| Spindle motor (40%ED) | 45 kW (60 HP) | |
| Spindle motor (cont. rating) | 37 kW (50 HP) | |
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (40%ED) | 260 N･m | |
| Max. torque (cont. rating) | 191 N･m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Min. B-axis indexing increment | 0.0001° | |
| Automatic tool changer | Tool shank | CAT50 |
| Tool storage capacity | 40 | |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 20″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 40″ |
| Y-axis | 26″ | |
| Z-axis | 123″ | |
| W-axis (second spindle) | 113″ | |
| Rapid traverse rate | X-axis | 1575 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1575 IPM | |
| Tailstock | Tailstock center | MT No.6 |
| Max. thrust force | 6744 lbs | |
| Machine size | Machine width × length | 333″ × 201″ |
| Machine height | 153″ | |
| Machine weight | 68342 lbs |
* Chuck size (option) Main spindle: 18″ – 32″
* Tailstock feedrate: 11-12 m/min (range is based on variable speed control)
| Bed length | Bed length type | 3000U |
|---|---|---|
| Main spindle | Max. spindle speed | 1600 rpm |
| Spindle motor (40%ED) | 45 kW (60 HP) | |
| Spindle motor (cont. rating) | 37 kW (50 HP) | |
| Second spindle | Max. spindle speed | 1600 rpm |
| Spindle motor (40%ED) | 45 kW (60 HP) | |
| Spindle motor (cont. rating) | 37 kW (50 HP) | |
| Milling spindle | Max. spindle speed | 10000 rpm |
| Max. torque (40%ED) | 260 N･m | |
| Max. torque (cont. rating) | 191 N･m | |
| Spindle motor (40%ED) | 37 kW (50 HP) | |
| Spindle motor (cont. rating) | 30 kW (40 HP) | |
| Min. B-axis indexing increment | 0.0001° | |
| Automatic tool changer | Tool shank | CAT50 |
| Tool storage capacity | 40 | |
| Max. tool diameter | Φ5″ | |
| Max. tool diameter (without adjacent tool) | Φ10″ | |
| Max. tool length (from gauge line) | 20″ | |
| Max. tool weight | 66 lbs | |
| Travel | X-axis | 40″ |
| Y-axis | 26″ | |
| Z-axis | 123″ | |
| B-axis | -30° to +210° | |
| Rapid traverse rate | X-axis | 1575 IPM |
| Y-axis | 1575 IPM | |
| Z-axis | 1575 IPM | |
| Machine size | Machine width × length | 359″ × 201″ |
| Machine height | 153″ | |
| Machine weight | 72751 lbs |
* Chuck size (option)
Main spindle: 18″ – 32″ Second spindle: 18″ – 24″
