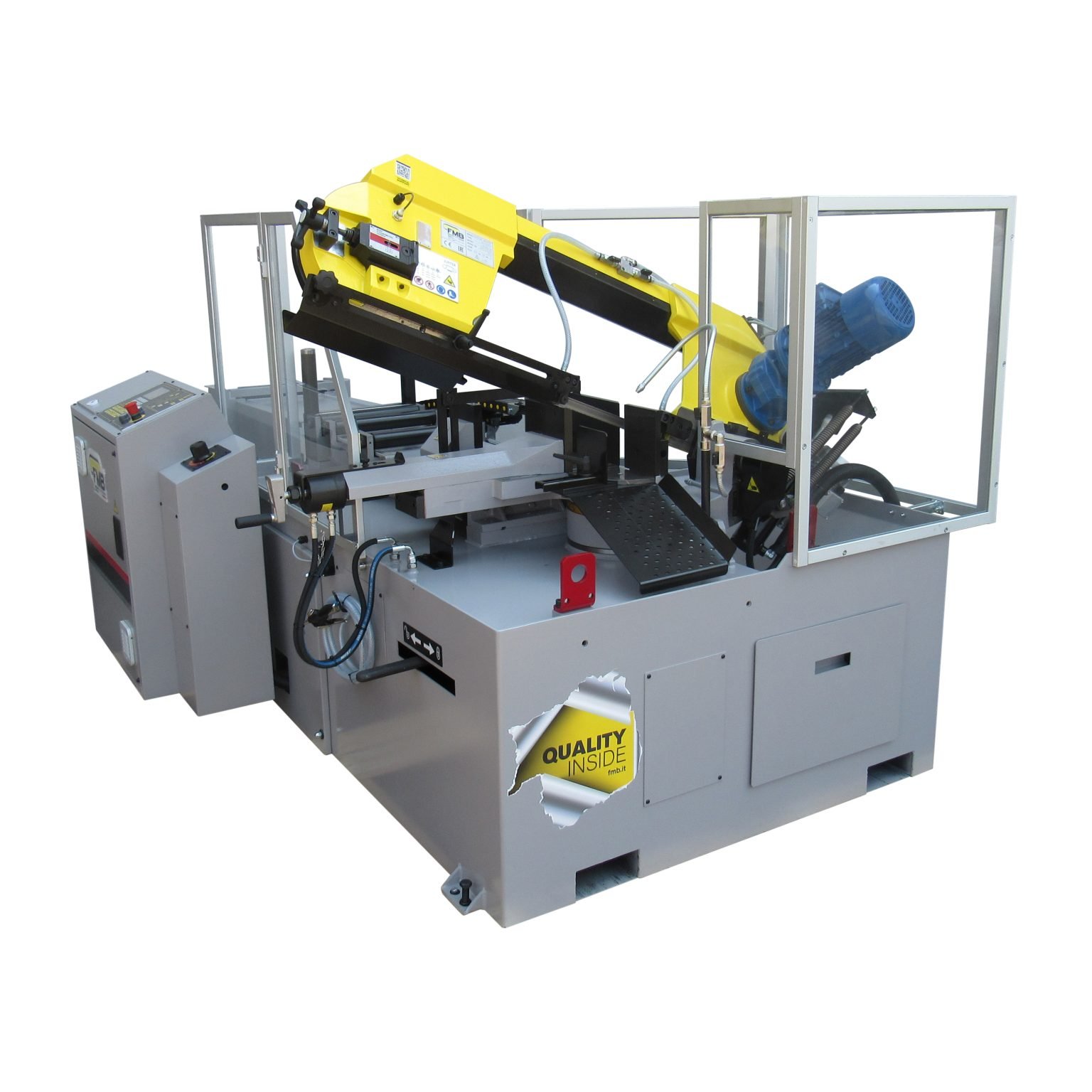

The Pat Mooney Jupiter is a CNC automatic bandsaw machine for sale engineered for high-output metal cutting environments. It delivers precision, repeatability, and efficiency for demanding applications. Moreover, this hydraulic automatic bandsaw for metal integrates advanced control systems to streamline operations. As a result, machine shops benefit from improved throughput and reduced manual intervention. This high production bandsaw for machine shop environments supports scalable performance across continuous cutting cycles.
Jupiter Features:
Pat Mooney Jupiter is a CNC automatic bandsaw machine for sale designed for high-output environments. It enhances workflow efficiency while supporting continuous operation with minimal manual input. The system uses advanced CNC controls to regulate feed rates and cutting parameters, which improves process stability. As a result, operators achieve reliable cut quality across multiple cycles, making it a predictable and scalable high production bandsaw for machine shop applications. In addition, reduced downtime improves overall equipment effectiveness, allowing manufacturers to meet demanding production targets without sacrificing accuracy.
This hydraulic automatic bandsaw for metal ensures accurate material positioning during every cycle and maintains tight tolerances under heavy workloads. It also features a rigid frame design that minimizes vibration during cutting operations. This construction reduces blade wear while improving overall surface finish quality. Engineers gain greater process control and achieve repeatable outcomes, which supports improved production consistency across every batch.
The Pat Mooney Jupiter system integrates easily into existing machine shop environments and supports automated workflows with minimal disruption. Additionally, the programmable CNC interface allows customization for specific production requirements, enabling quick and efficient parameter adjustments. This CNC automatic bandsaw machine for sale reduces labor dependency while enhancing operational safety through controlled automation. Machine shops benefit from increased throughput and reduced operational risk with a high production bandsaw for machine shop applications.
| Cutting Capacity | O Degree | 45 Degree | 60 Degree | Bundle |
| Round | 10 1/4” | 10 1/4” | 7” | — |
| Rectangle | 10 1/4” x 11 3/4” | 4 3/4” x 11 1/2” | 3 1/2” x 7 1/2” | 4-3/4” x 11” |
| Square | 10 1/4” x 10 1/4” | 10 1/4”x 10 1/4” | 7” x 7” | — |
| Blade Size | 10’10” x 1″ x .035″ | ||
| Blade Speed | Variable 52 to 394 FPM | ||
| Saw Motor Power | 2 HP | ||
| Shuttle Stroke | 19.68″ | ||
| Voltages Available | 220v/3PH, 440v/3PH | ||
| Foot Print | 91″ x 75″ | ||
| Weight | 2,530 lbs. |
The FMB Jupiter is a compact CN-controlled automatic bandsaw that combines cut-to-length production with automatic miter capability up to 60 degrees, giving fabricators one machine for straight and angled recurring cuts. A.W. Miller Technical Sales supports manufacturers throughout New York, Pennsylvania, Maryland, Delaware, Southern New Jersey, and Quebec with applications engineering, installation, training, and service support.
The control stores up to 99 cutting projects, while variable blade speed, a 19.68-inch shuttle stroke, scrap-minimization technology, and a 10-1/4-inch round capacity support mixed fabrication work where angle changes and repeat lengths are both part of the schedule.
Applications commonly evaluated for the Jupiter include:
The saw can produce straight cuts and programmed angled cuts up to 60 degrees without limiting the machine to one cut orientation.
Recurring jobs can be recalled with less setup than rebuilding length and quantity information each time.
The work envelope suits common fabrication stock without requiring a large production-saw footprint.
Material handling and control functions are designed to reduce remnant waste across recurring cut jobs.
Jupiter adds miter cutting up to 60 degrees, while Zeus is configured for straight cuts only. Both are automatic 10-1/4-inch-class machines.
Pat Mooney Saws lists a 7-inch round capacity at 60 degrees, compared with 10-1/4 inches at 0 and 45 degrees.
The CN control can store up to 99 cutting projects for recurring production.
Fabricators producing frames, rails, structural assemblies, trailers, tube components, and other parts with recurring angled cuts can reduce manual repositioning and setup.
Blade width, tooth pitch, set, material grade, section geometry, and angle all affect cutting load. The process should be developed around the most demanding section and angle in the job family.
