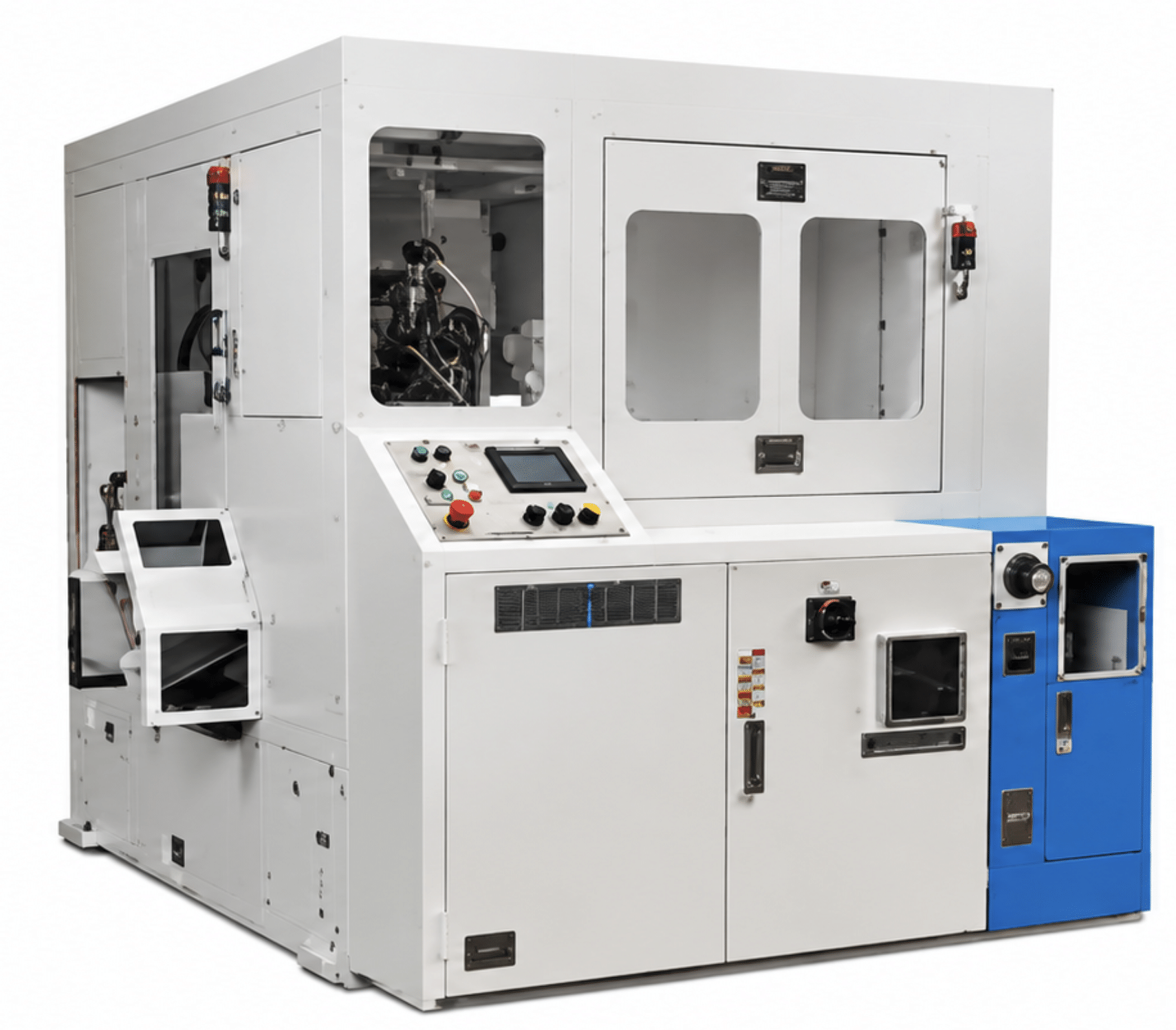

NHC-180/200 Series (7 inch Cutting Capacity)

It identifies the large-capacity NHC platform offered in 180 mm and 200 mm configurations. The published NHC-180 specification covers round stock from 2 to 7 inches (50 to 180 mm), while the selected configuration depends on the required stock envelope.

It is evaluated for recurring production cutoffs in heavy solid bar, pipe, structural stock, and forging blanks where a 7-inch-class carbide circular saw can replace slower or multiple-saw processing. Material testing remains important for difficult sections and alloys.

Pat Mooney Saws can provide bundle holders that contain the stock after steel straps are removed, along with custom load tables and chain-loading systems. The design must account for bundle weight, bar length, alignment, operator access, and safe separation.

The platform uses close blade guides, clamping on both sides of the blade, servo-controlled feed, a precision spindle and reduction gearbox, powered chip brushing, and lubrication at the cutting tip. Correct blade selection and stock alignment remain necessary.

Confirm the exact model, minimum and maximum section sizes, solid or hollow geometry, material and hardness, incoming length and bundle weight, cut tolerance, production rate, blade plan, remnant target, load system, and finished-part exit method.
