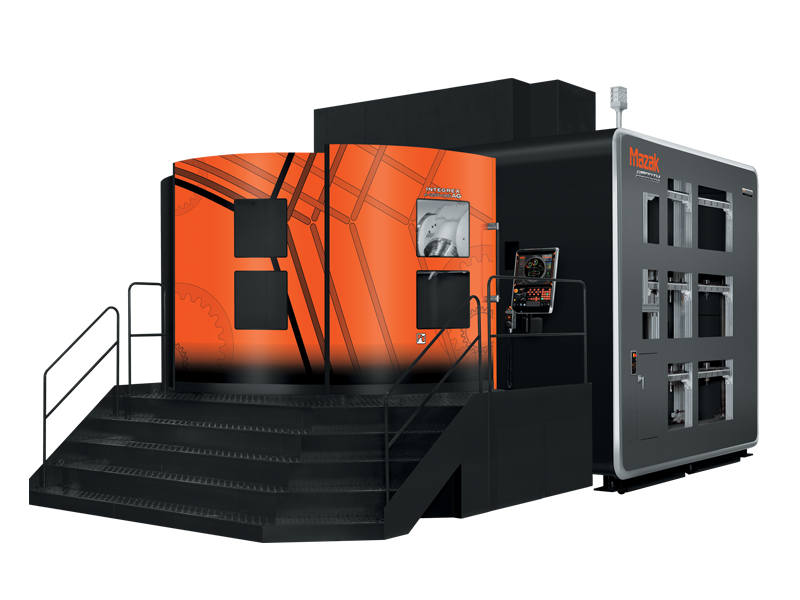

Integrex e-1250V AG

This Mazak multi-tasking machine delivers multi-tasking performance and heavy-duty turning in one platform—ideal for producing large, complex parts. It’s well-suited for aerospace, heavy construction, and energy applications, efficiently machining titanium, aluminum, and steel for components like jet engine casings and gearboxes.

Integrex e-1250V Features:

Gear process integration facilitates high-precision machining while reducing in-process time and initial costs.
Three types of gear machining methods (gear skiving, hobbing, and endmilling) are integrated to meet diverse needs, from high-mix low-volume production to mass production
Cutting tool paths and measurement can be easily and quickly generated by conversational programming

Model	Integrex e-1250V/8 AG, Integrex e-1250V/8S AG
Max Workpiece Diameter	57.09"
Max Machining Length	62.99", 65.16"

$1.00

Description

Engineered for Precision and Productivity

The Mazak Integrex e-1250V AG is a high-performance vertical machining center that combines milling, turning, boring, and drilling in one setup. Its direct-drive table eliminates backlash, ensuring rotational accuracy during demanding operations. It also features a tilting B-axis, which enables full multi-tasking machining for complex geometries, while high-speed and high-torque spindle options support a variety of machining capabilities.

Advanced Machining Capabilities for Complex Manufacturing

The Integrex e-1250V AG minimizes workpiece transfers and setup times, helping reduce production waste and improve lead times. This design maintains optimal surface finishes and dimensional accuracy on large or intricate components. In addition, its multi-tasking structure allows shops to increase productivity while conserving floor space, making it ideal for job shops and production facilities.

Prepared for Automation Integration

This machine is built for automation integration, offering compatibility with robotic material handling and flexible production cells. Its layout supports unattended operation, maximizes uptime, and streamlines workflows. When paired with automation, the e-1250V AG becomes a complete production solution, delivering consistent results in high-value manufacturing environments.

Additional Information

Model	Integrex e-1250V/8 AG, Integrex e-1250V/8S AG
Max Workpiece Diameter	57.09"
Max Machining Length	62.99", 65.16"

Specifications

Integrex e-1250V/8 AG

Capacity	Max. machining diameter	Φ57″
	Max. workpiece size	Φ57″ × 63″
	Table load capacity (evenly distributed) (including pallet)	5952 lbs
Table	Max. spindle speed	500 rpm
	Max. torque (cont. rating)	3434 N･m
	Spindle motor (cont. rating)	40 kW (53 HP)
	Rapid traverse rate (C-axis)	25 rpm
	Min. indexing angle increment (C-axis)	0.0001°
Milling spindle	Max. spindle speed	10000 rpm
	Max. torque (40%ED)	260 N･m
	Max. torque (cont. rating)	191 N･m
	Spindle motor (40%ED)	37 kW (50 HP)
	Spindle motor (cont. rating)	30 kW (40 HP)
	Rapid traverse rate (B-axis)	30 rpm
	Min. indexing angle increment (B-axis)	0.0001°
Automatic tool changer	Tool shank	CAT No.50
	Tool storage capacity	42
	Max. tool diameter	Φ5″
	Max. tool diameter (without adjacent tool)	Φ10″
	Max. tool length (from gauge line)	26″
	Max. tool weight	66 lbs
Travel	X-axis	74″
	Y-axis	49″
	Z-axis	53″
	B-axis	150°
	C-axis	360°
Rapid traverse rate	X-axis	1654 IPM
	Y-axis	1654 IPM
	Z-axis	1654 IPM
Machine size	Machine width × length	205″ × 367″
	Machine height	169″
	Machine weight	109128 lbs

* When X-axis is at minus end: Φ43.31″

INTEGREX e-1250V/8S AG

Capacity	Max. machining diameter	Φ59″
	Max. workpiece size	Φ59″ × 63″
	Table load capacity (evenly distributed) (including pallet)	8818 lbs
Table	Max. spindle speed	500 rpm
	Max. torque (cont. rating)	3434 N･m
	Spindle motor (cont. rating)	40 kW (53 HP)
	Rapid traverse rate (C-axis)	25 rpm
	Min. indexing angle increment (C-axis)	0.0001°
Milling spindle	Max. spindle speed	10000 rpm
	Max. torque (40%ED)	260 N･m
	Max. torque (cont. rating)	191 N･m
	Spindle motor (40%ED)	37 kW (50 HP)
	Spindle motor (cont. rating)	30 kW (40 HP)
	Rapid traverse rate (B-axis)	30 rpm
	Min. indexing angle increment (B-axis)	0.0001°
Automatic tool changer	Tool shank	CAT No.50
	Tool storage capacity	42
	Max. tool diameter	Φ5″
	Max. tool diameter (without adjacent tool)	Φ10″
	Max. tool length (from gauge line)	26″
	Max. tool weight	66 lbs
Travel	X-axis	74″
	Y-axis	49″
	Z-axis	53″
	B-axis	150°
	C-axis	360°
Rapid traverse rate	X-axis	1654 IPM
	Y-axis	1654 IPM
	Z-axis	1654 IPM
Machine size	Machine width × length	205″ × 328″
	Machine height	169″
	Machine weight	99208 lbs

* When X-axis is at minus end: Φ43.31″

Mazak Integrex e-1250V AG Capabilities, Applications & Regional Support

The Mazak Integrex e-1250V AG is a large vertical multi-tasking center with gear-manufacturing capability for large gears, rings, turbine parts, and heavy transmission components. Its configuration centers on vertical turning, B-axis milling, and integrated gear-process functions, giving manufacturers a defined platform for parts whose critical features depend on controlled access, stable workholding, and repeatable datum management. As an authorized Mazak distributor, A.W. Miller helps manufacturers evaluate the workpiece, tooling, workholding, automation, installation, and long-term service requirements behind the machine. A.W. Miller Technical Sales is an authorized Mazak distributor serving manufacturers throughout New York, Pennsylvania, Maryland, Delaware, Southern New Jersey, and Quebec, with applications engineering, installation, training, and factory-certified service.

The AG version of the e-1250V adds gear-production capability to a platform already suited to large rotational components with demanding milled and turned features. Machine selection should account for the complete workpiece and fixture envelope, material, spindle load, required tool reach, magazine or turret demand, probing, chip control, and automation plan. Published travels, capacities, spindle ratings, rotary ranges, tool limits, and maximum loads must be checked against the exact machine configuration and part process before purchase.

Applications

Parts and processes commonly evaluated for the Mazak Integrex e-1250V AG include:

large transmission rings
turbine gear components
marine propulsion parts
heavy industrial gears

Why Manufacturers Choose the Mazak Integrex e-1250V AG

Large Integrated Gear Processing

Gear forms can be coordinated with bores, faces, holes, and mounting geometry in the same workholding.

Vertical Support for Heavy Rings

The table carries the part mass directly while the articulating spindle and gear tooling approach required features.

Gear-Feature Process Development

Gear tooling, cutting method, module or diametral pitch, pressure angle, material condition, and finishing allowance must be evaluated together. The Integrex e-1250V AG configuration should be based on the required gear form as well as the surrounding turned and milled geometry.

In-Process Datum Control

Producing journals, bores, mounting faces, and applicable gear features in the same machine helps preserve their positional relationship. Probing and inspection strategy should be established from the drawing rather than added after the cutting process is developed.

What type of work is the Mazak Integrex e-1250V AG designed to handle?

How should a shop evaluate capacity on the Integrex e-1250V AG?

Which operations can the Integrex e-1250V AG consolidate?

What applications are a strong fit for the Integrex e-1250V AG?

What should be reviewed before ordering a Integrex e-1250V AG?
