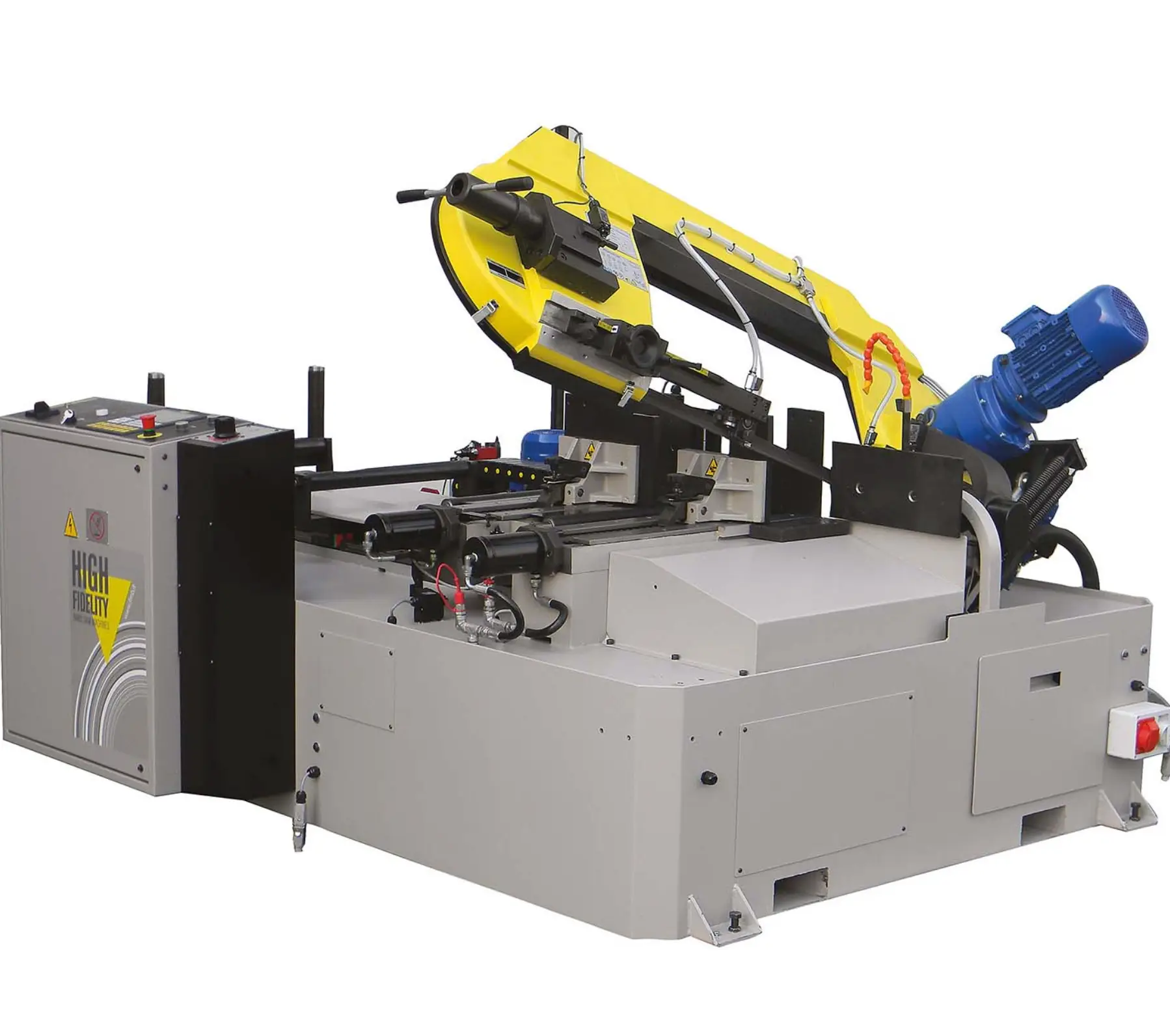

Producing structural components with multiple cutting angles requires precise coordination between material positioning and saw-head movement. The FMB Pegasus CNC brings programmable control to this process, allowing manufacturers to automate miter-cutting operations rather than manually establishing each cutting angle. Designed for industrial fabrication, the machine supports repeatable angular cuts on structural profiles, tubing, and bar stock, making it particularly useful for production environments where component lengths and end geometries vary throughout a cutting program.
Pegasus CNC Features:
The FMB Pegasus CNC incorporates programmable miter positioning to establish cutting angles through the machine control. This reduces reliance on manual saw-head adjustments when producing components with different angular requirements. As a CNC automatic miter bandsaw, the machine supports repeatable angle selection for structural members that require consistent end geometry before welding, machining, or assembly.
Angular cutting requirements often extend beyond standard 45-degree miters, particularly when preparing diagonal braces, supports, and specialized frame components. The Pegasus CNC is positioned as a 60 degree CNC miter saw for applications requiring a wider range of cutting angles. Programmable miter positioning allows manufacturers to establish the required geometry for structural connections while reducing repeated manual angle adjustments between operations.
Fabrication jobs frequently involve multiple part lengths and cutting angles within the same assembly. The Pegasus CNC provides an automated sawing platform for preparing these components through controlled cutting operations. By integrating CNC angle positioning with automatic bandsaw functionality, manufacturers can streamline the preparation of structural tubing, profiles, and other metal sections while maintaining consistent cutting requirements across repeated production jobs.
| Cutting Capacity | 0 Degree | 45 Degree | 60 Degree | Bundle |
| Round | 13″ | 12-1/2″ | 9″ | – |
| Rectangle | 13″ x 20″ | 10-1/4″ x 13-1/2″ | 6-1/4″ x 9″ | 8″ x 16-1/8″ |
| Square | 13″ x 13″ | 10-1/4″ x 10-1/4″ | 6-1/4″ x 6-1/4″ | – |
| Blade Size | 13’6″ x 1-1/4″ x .042″ |
| Blade Speed | Variable 52 to 394 FPM |
| Saw Motor Power | 4 HP |
| Shuttle Stroke | 39.37″ |
| Voltages Available | 220v/3PH, 440v/3PH |
| Footprint | 181″ x 95″ |
| Weight | 4,775 lbs |
