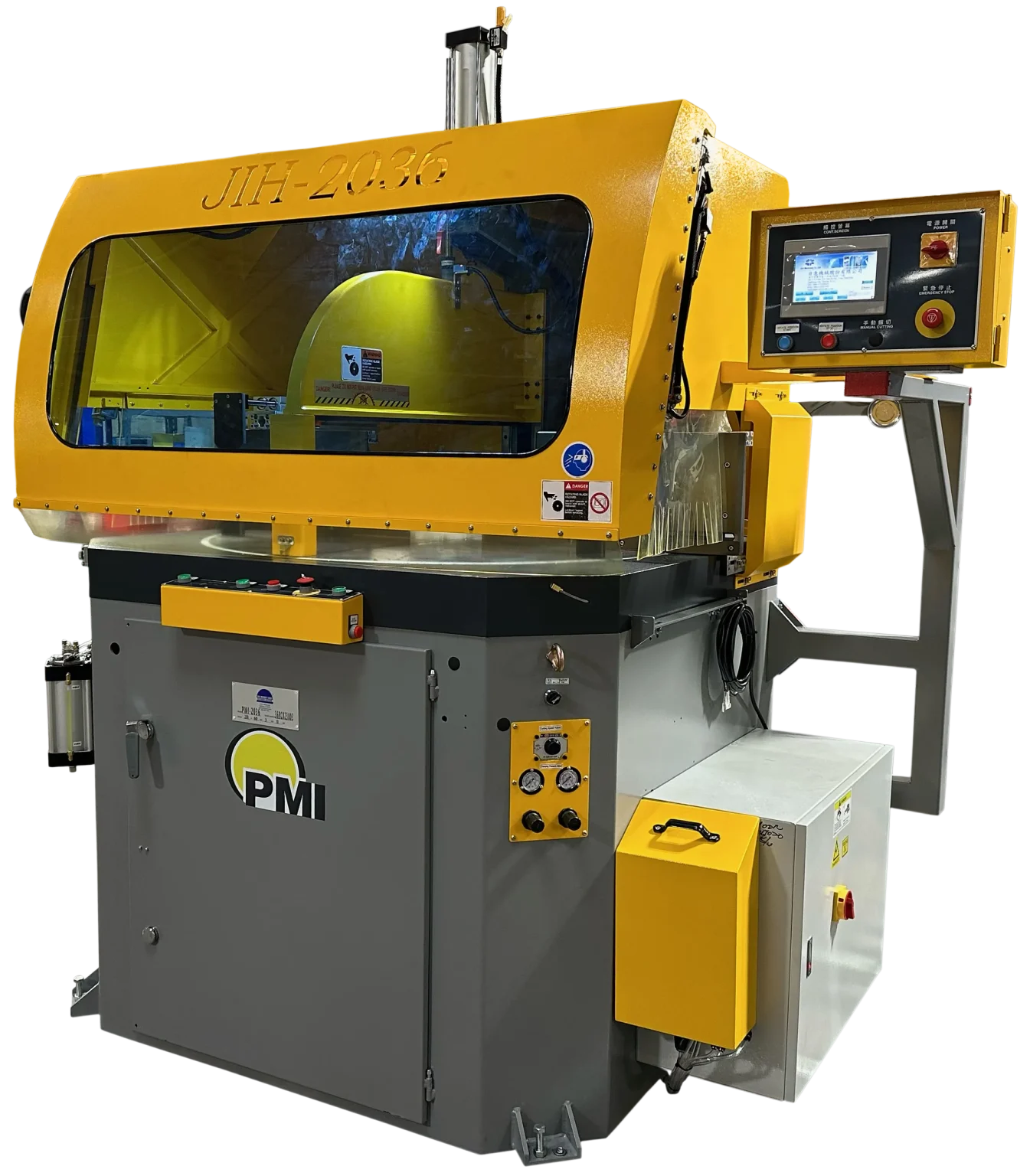

Oversized aluminum extrusions require a miter saw with enough working room to handle the profile without sacrificing angular flexibility. The PMI-20 36 Miter Upcut Saw pairs a 36-inch blade with servo-controlled head positioning for straight and angled cutoff work. With capacity up to 12.6 inches high and 20.87 inches wide, the machine is built for substantial nonferrous profiles that need accurate miter cutting on a larger production platform.
PMI-20 36 Miter Upcut Saw Features:
Changing angles on large profiles can add considerable setup time when the saw head must be positioned manually. The PMI-20 36 uses powered head positioning, giving this servo head aluminum miter saw controlled movement between straight and angled cuts. This allows fabricators to process changing miter requirements while keeping large aluminum extrusions on the same cutting platform.
A 10 HP motor drives the large blade at 1,200 RPM, providing the cutting platform needed for substantial aluminum and nonferrous sections. The 36 inch miter upcut saw combines this capacity with hydraulic blade feed to control advancement through the workpiece. Vertical and horizontal clamping secure the profile as the blade rises through the material.
At 90°, the PMI-20 36 accommodates sections up to 12.6 inches high and 20.87 inches wide. This makes the 20.87 inch profile saw particularly useful for broad extrusions, structural profiles, and fabricated aluminum components that exceed the working envelope of smaller miter machines. The larger cutting window allows these parts to retain miter capability without moving to a separate saw.
| Specification | Value |
| Saw Motor | 10 HP |
| Miter Range | 60° left to 60° right |
| Head Rotation | Powered, servo driven |
| Blade Speed | 1,200 RPM |
| Blade Diameter | 36 in |
| Maximum Sawing Height | 12.6 in |
| Maximum Sawing Width | 20.87 in |
| Cutting Feed | Fully hydraulic |
