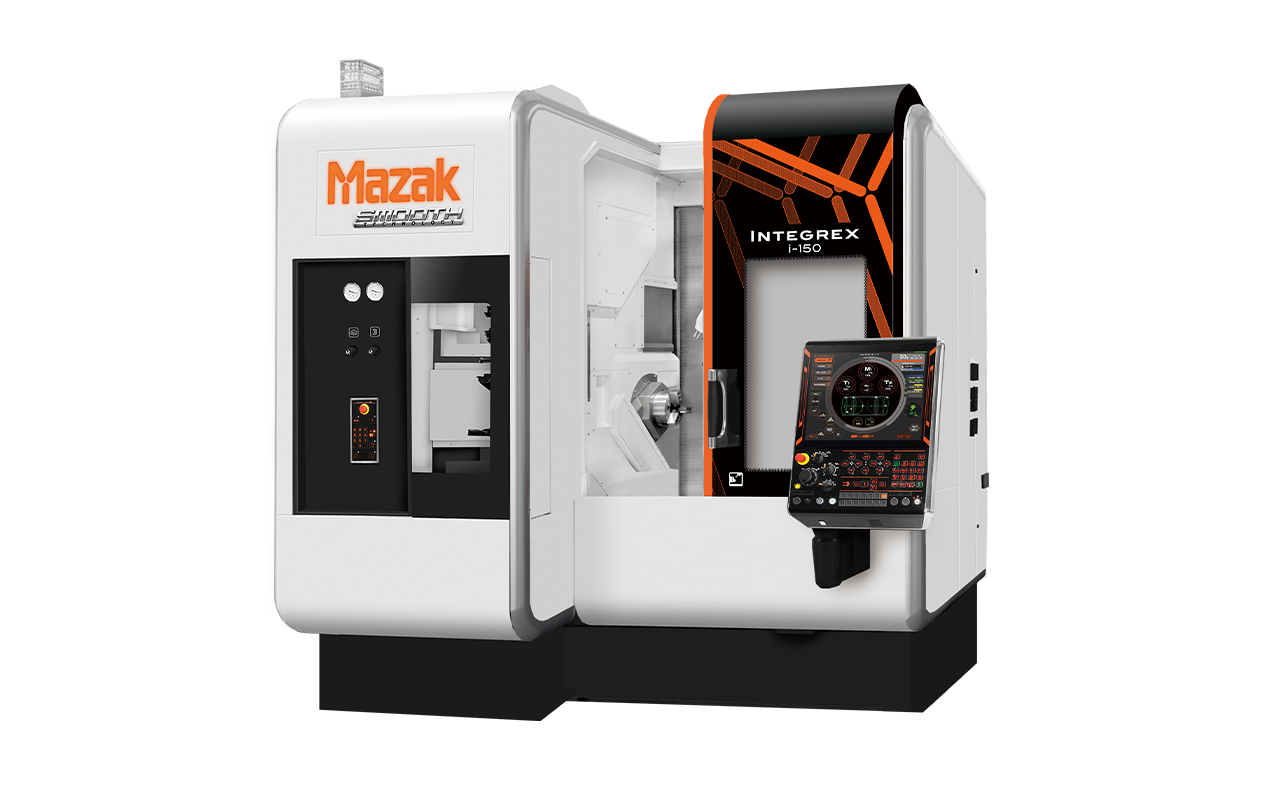

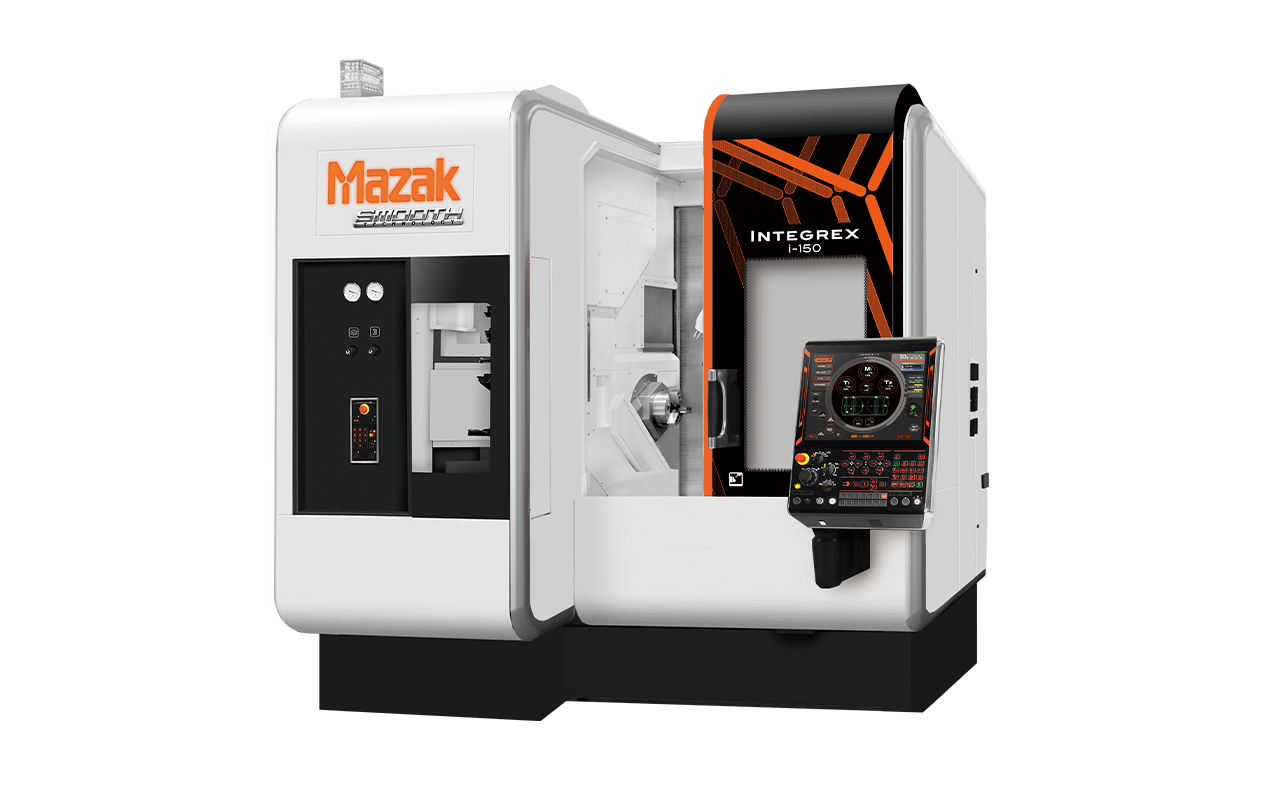

Integrex i-150

Delivering maximum versatility, high precision and throughput for smaller complex parts in single setups, the Mazak Integrex i-150 combines capabilities of a high-powered turning center and full-function machining center. The programmable, workpiece handling device allows milling operations to the back face.

This machine configuration works to minimize fixtures, tools, handling and non-cut time, reduces lead-time and improves part accuracy by eliminating multiple setups. With 5-axis machining capability, it processes fully prismatic parts from solid blocks or castings (chucked or bar fed), round parts, or highly contoured parts.



Integrex i-150 Features:

  • Milling spindle travel: -30 ~ 210 degrees (.0001 degree min index angle)
  • Optional 20k RPM (7.5 HP) milling spindle available
  • Full C-axis contouring (.0001 degree minimum index)
  • Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
  • 36-tool ATC standard ( HSK A63 ) – 72 tool option available
  • Programmable workpiece handling device (standard) – tailstock attachment optional
Model

INTEGREX i-150

Chuck Size

Max Workpiece Diameter

13.39"

Max Machining Length

15.16"

View Machine Brochure

$1.00

Description
Compact Design and Advanced Functionality for Integrex i-150

The Mazak Integrex i-150 lathe turning systems deliver powerful multi-tasking in a compact footprint.  This model combines turning and milling operations with full 5-axis capability, enabling efficient production of complex parts in a single setup. Built for small-to-medium-sized components, the i-150 excels in high-mix environments where optimized floor space and flexibility are critical. This Mazak machining center features a high-speed milling spindle capable of up to 12,000 rpm and dual spindles for smooth part transfer. Additionally, it supports tight-tolerance work and complex geometries, while the ergonomic flat-front design and large window access enhances operator visibility and streamlines automation integration.



Precision and Control in One Platform

Mazak’s Smooth CNC Control enhances the i-150 with intelligent functionality. This system includes digital twin support, adaptive programming, and real-time feedback. As a result, operators reduce cycle time and increase part accuracy. Thermal stability systems further support consistency over long production runs. This compact unit aligns with manufacturers using lathe turning systems for precision work. It also complements production cells that rely on spare machining components, streamlining transitions between tasks while maintaining process quality.



Compact 5-Axis Efficiency from a Trusted Mazak Machine Dealer

With its multi-process capabilities, the Integrex i-150 is an ideal fit for shops focused on precision, flexibility, and space efficiency. Built on a compact 5-axis platform, it delivers high-performance machining for complex parts while optimizing floor space and cycle time. Whether integrated into a lean production line or used as a standalone unit, the i-150 increases throughput without sacrificing quality. As a Mazak machine dealer, we recommend the i-150 as a smart solution for precision components and adaptable manufacturing environments.

Additional Information
Model

INTEGREX i-150

Chuck Size

Max Workpiece Diameter

13.39"

Max Machining Length

15.16"

Integrex i-150
CapacityMax. machining length15″
Main spindleChuck size6″
Max. spindle speed5000 rpm
Spindle motor (40%ED)11 kW (15 HP)
Spindle motor (cont. rating)7.5 kW (10 HP)
Milling spindleMax. spindle speed12000 rpm
Max. torque (20%ED)36 N・m
Max. torque (cont. rating)14 N・m
Spindle motor (20%ED)7.5 kW (10 HP)
Spindle motor (cont. rating)3 kW (4 HP)
Min. B-axis indexing increment0.0001°
Automatic tool changerTool shankHSK-A63
Tool storage capacity36
Max. tool diameterΦ4″
Max. tool diameter (without adjacent tool)Φ5″
Max. tool length (from gauge line)8″
Max. tool weight11 lbs
TravelX-axis15″
Y-axis8″
Z-axis17″
B-axis-10° to 190°
Rapid traverse rateX-axis1575 IPM
Y-axis1575 IPM
Z-axis1575 IPM
Machine sizeMachine width × length91″ × 98″
Height98″
Machine weight16093 lbs
