The Okamoto HPG-500NCS provides CNC-controlled surface and form grinding for small parts requiring tight tolerances and repeatable results. This high-speed Okamoto grinder combines precise axis positioning, short-stroke table performance, and programmable grinding cycles for demanding production environments.
HPG-500NCS Features:
| Max Cross Travel | 9" |
|---|---|
| Max Table Travel | 20.86" |

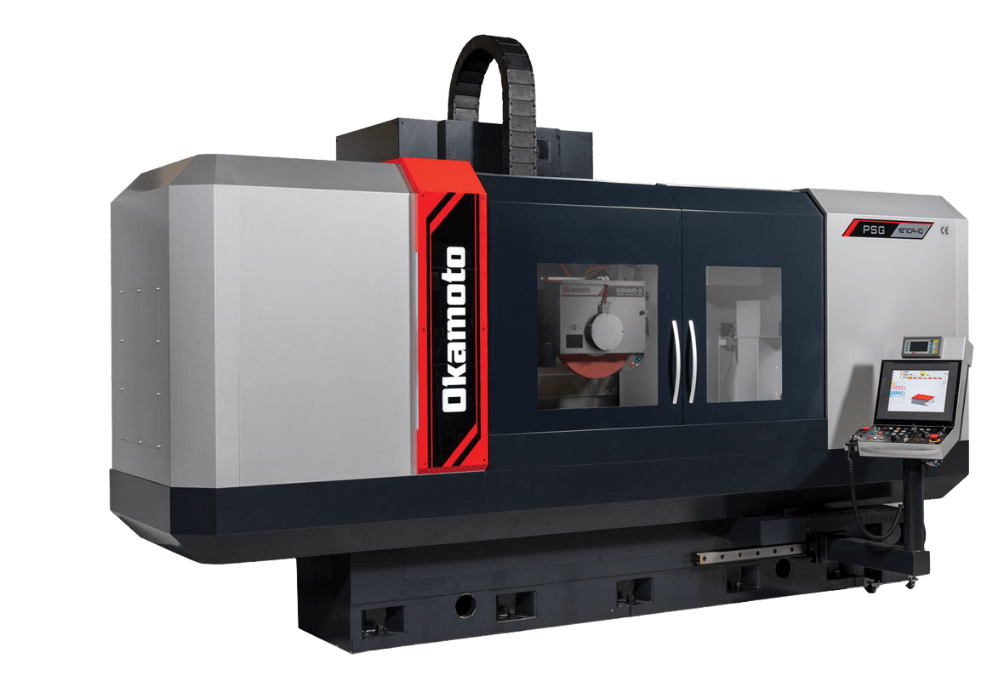

The Okamoto PSG CAiQ Series is a CNC surface grinder developed for precision grinding of larger workpieces. Its column-type configuration provides the working capacity and stability required for demanding grinding applications while maintaining operator access for setup and part handling. A heavy-duty cast machine bed and column feed system support controlled machine movement, helping maintain accuracy and consistency across larger components.
The PSG CAiQ Series combines CNC control with Okamoto’s iQ software to simplify machine setup and grinding operations. A 15-inch touchscreen uses a text-free interface to guide operators through the grinding process, reducing the complexity of programming different applications. This control platform provides a more accessible approach to CNC grinding while maintaining the process control required for precision production.
For applications requiring additional process monitoring, the PSG CAiQ can be equipped with optional in-process measurement for real-time dimensional checks during grinding. Compatibility with MAP grinding software provides additional control over grinding parameters for different applications. An available automatic wheel balancing system also helps control vibration and maintain consistent grinding performance. These capabilities make the PSG CAiQ a precision surface grinding machine for manufacturers handling complex parts and demanding production requirements.
| Max Cross Travel | 9" |
|---|---|
| Max Table Travel | 20.86" |
