| Model | FF-n5000/40 |
|---|---|
| Tool shank | 40 |
| Max. workpiece size | 28.35 × 28.15 |
| Max Workpiece Diameter | 28.35" × 28.15" |
| Table size | 19.69" × 19.69" |
| X Axis Stroke | 20.07" |
| Y Axis Stroke | 21.65" |

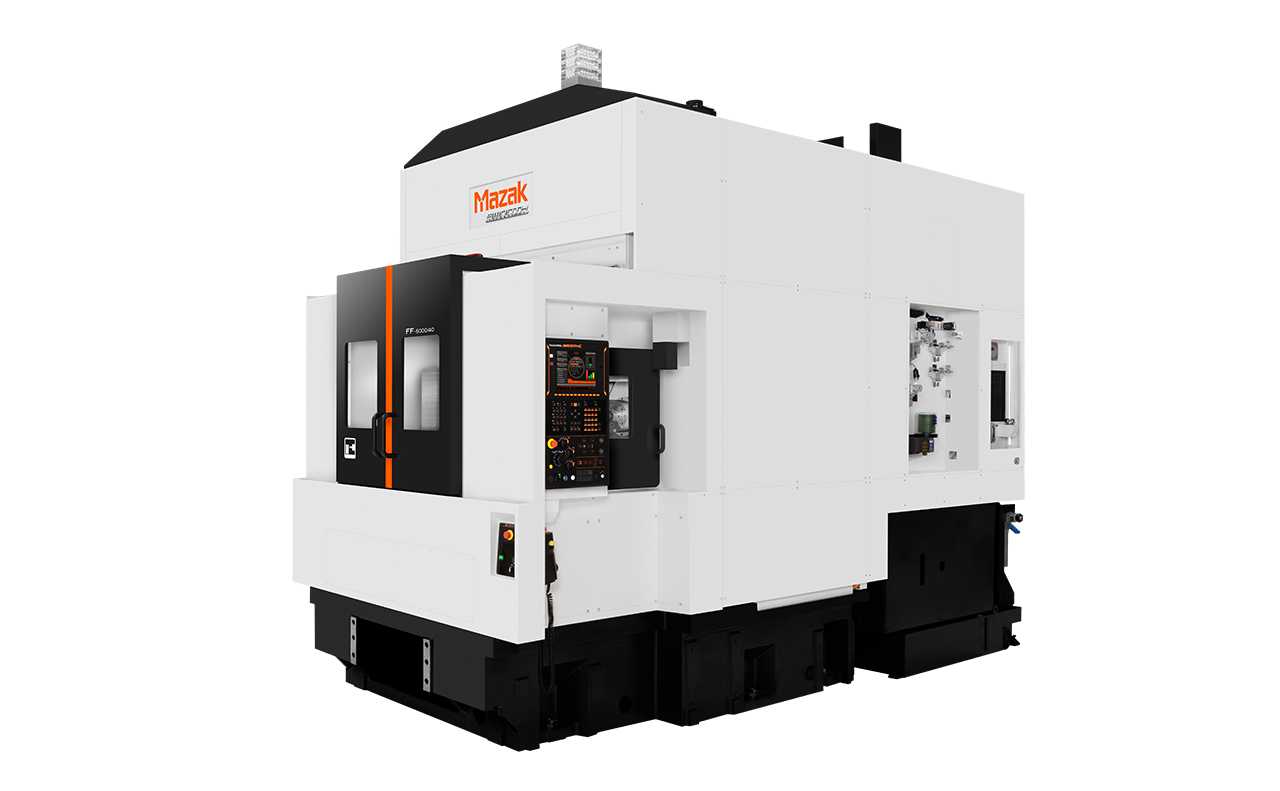

The Mazak FF-n5000 is a compact horizontal machining center designed to deliver precision and speed in high-volume production. Built for automotive, aerospace, and industrial applications, this machine supports complex CNC machining solutions with reliability and reduced cycle times. In addition, its rigid frame construction and compact footprint integrate into production cells seamlessly. This makes it an ideal choice for manufacturers aiming to increase throughput without expanding floor space.
The FF-n5000 features a robust built-in spindle that improves speed, power transfer, and thermal stability during demanding machining operations. This direct-drive configuration minimizes vibration and ensures smooth, consistent cutting for both roughing and finishing. In addition, by reducing tool changeover time and improving spindle balance, it shortens cycle times and extends tool life. As a high-speed machining solution, the FF-n5000 maintains accuracy over long production runs and supports the rapid delivery requirements of modern manufacturing.
The FF-n5000 was engineered for productivity by integrating fast tool changers, efficient chip evacuation, and an automation-ready design. In addition, the horizontal machining center architecture enhances part access and chip flow to reduce downtime and improve overall workflow. The machine’s intelligent control system also streamlines setup and programming, which allows operators to produce consistent, repeatable parts across multiple shifts. For shops focused on scaling production while maintaining tight tolerances, the FF-n5000 provides a reliable, long-term solution.
| Model | FF-n5000/40 |
|---|---|
| Tool shank | 40 |
| Max. workpiece size | 28.35 × 28.15 |
| Max Workpiece Diameter | 28.35" × 28.15" |
| Table size | 19.69" × 19.69" |
| X Axis Stroke | 20.07" |
| Y Axis Stroke | 21.65" |
| Pallet | Pallet size | 500 mm × 500 mm |
|---|---|---|
| Max. workpiece size | Φ720 mm × 715 mm | |
| Max. load (evenly distributed) | 500 kg | |
| Min. indexing angle | 0.001° | |
| Spindle | Tool shank | BT40 |
| Max. spindle speed | 12000 min-1 | |
| Max. torque (40%ED) | 82 N･m | |
| Max. torque (cont. rating) | 60 N･m | |
| Spindle motor (40%ED) | 18.5 kW (25 HP) | |
| Spindle motor (cont. rating) | 15 kW (20 HP) | |
| Automatic tool changer | Tool storage capacity | 20 |
| Max. tool diameter | Φ95 mm | |
| Max. tool diameter (without adjacent) | Φ160 mm | |
| Max. tool length (from gauge line) | 350 mm | |
| Max. tool weight | 10 kg | |
| Travel | X-axis | 510 mm |
| Y-axis | 550 mm | |
| Z- axis | 550 mm | |
| Distance between pallet top to spindle center | 45 mm to 595 mm | |
| Rapid traverse rate | X-axis | 62000 mm/min |
| Y-axis | 62000 mm/min | |
| Z- axis | 62000 mm/min | |
| Machine dimensions | Width x Length (MAZATROL SmoothC) | 1500 mm × 4000 mm |
| Height | 2970 mm | |
| Machine weight | 9600 kg |
