IGM-15NCIII/2

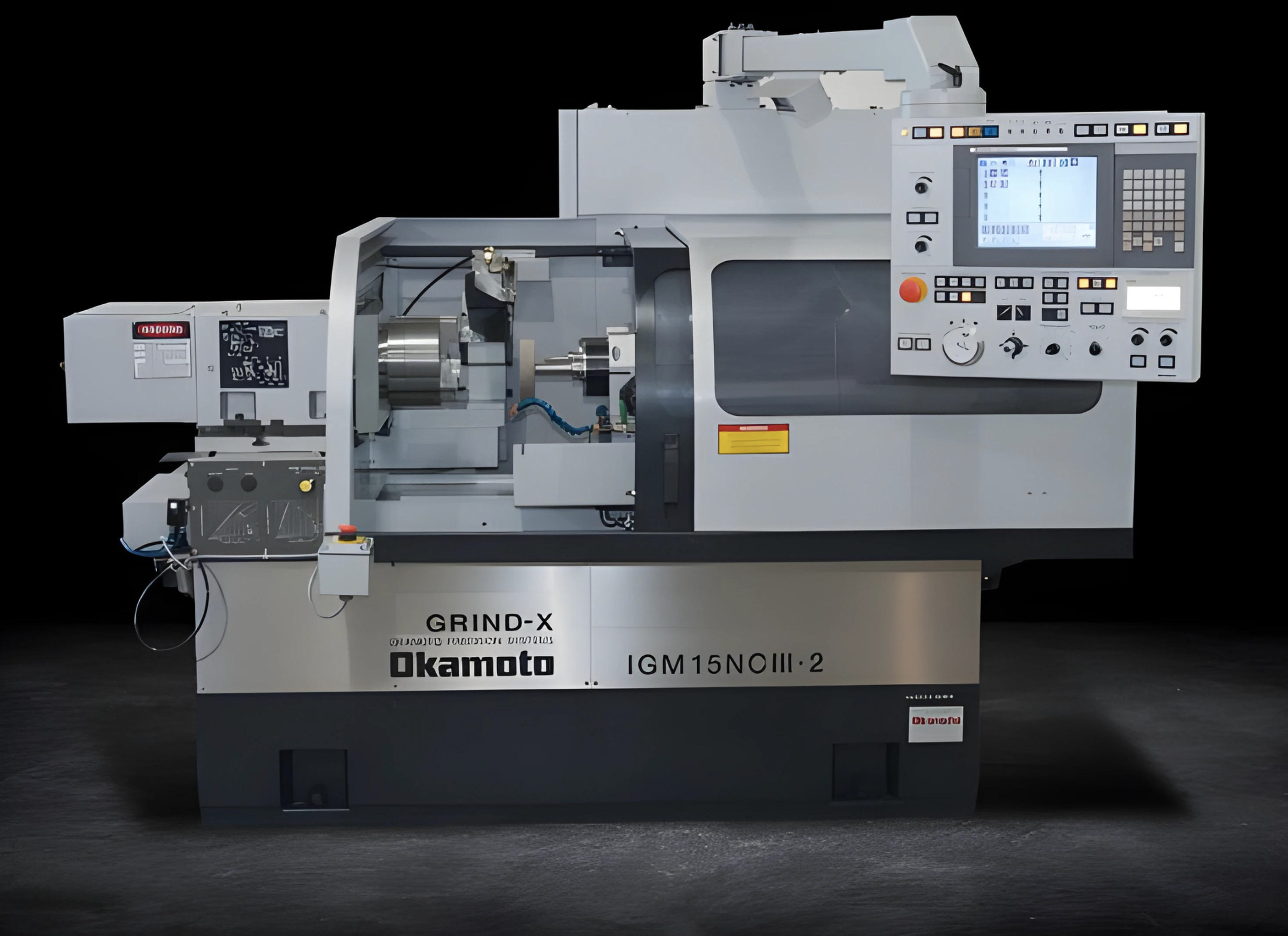

The IGM-15NCIII/2 is Okamoto’s latest generation CNC I.D. / O.D. Grinder. Rigid construction and premium components assure prolonged peak precision and long-term machine life. The new touch-screen CNC provides powerful control capabilities with ease of use.

• Twin spindle mode.
• New Fanuc OiTD ControTouch Screen functionality combined with conversationainput software.
• Rigid construction.
• Versatile grinding capability – Straight, Taper, Faces & Multi-Step. Grind I.Ds, O.Ds and Faces in a single chucking.
• AC driven table with minimum feed increments of 0.00001″.
• Minimum infeed increments as fine as 0.00001″ diameter.
• High-performance wheelhead with 3 programmable speeds.
• Rigid workhead with 100 to 850rpm speed.
• Interrupt function enable in-process dressing in auto grinding cycle.

SPECIFICATIONS

• Internal Diameter to be Ground:
• 0.24″ ~ 4″ If one spindle- 0.24″ ~ 6″
• Maximum Grinding Stroke:
• 3.2″ If one spindle- 5″
• Swing over table
• 24″
• Workhead Spindle Speed:
• 100 ~ 850 rpm
• Grinding Spindle:
• 7.5 hp
• Floor Space (LxWxH):
• 116″ x 101″ x 70″
• Weight:
• 5,300 lbs

STANDARD & OPTIONAL ACCESSORIES

Standard Accessories

• Fanuc Oi-Td Control
• Oil Mist Unit
• Oil Chill Unit
• Dress Coolant Unit
• Glass Scale Feedback (X-AXIS)
• 2-Point Swing Type Dresser with Diamond Tool
• Front Sliding Splashguard
• Wheel Spindle Speed Meters
• Wheel Spindle Load Meters
• Work Spindle Inverter
• Wheel Spindle Inverter
• Workhead Speed Meter
• Leveling Bolts & Pads
• Necessary Tools & Tool Box
• Work Light

Optional Accessories

• Coolant Systems with Paper Filter, with Paper Filter & Magnetic Separator
• Spindles 10,000/15,000/20,000/30,000/40,000/60,000 available
• Single Point Form Dresser with Diamond Tool
• Radius Dresser
• Rotary Dresser
• In-Process Gauging
• Power Chuck
• Collet Chuck
• Specialty Chucks (contact Okamoto for types & models)
• Run Light
