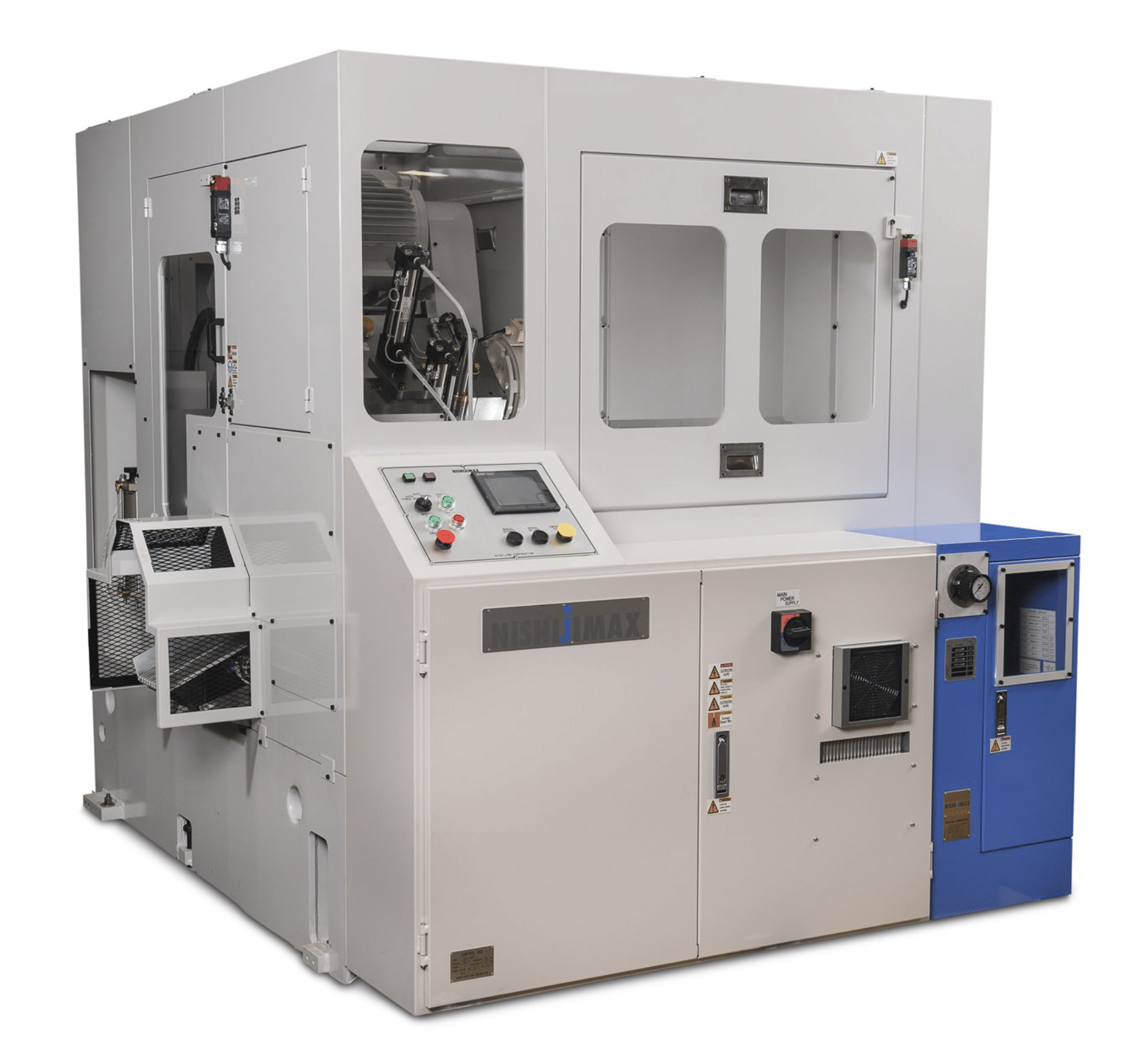

Medium-diameter ferrous cutoff work is the focus of the NISHIJIMAX NHC-130. With 5.118-inch (130 mm) capacity, the machine is sized for bar, billet, tube, and pipe that require automatic length positioning and a rigid circular-saw process. Servo-driven cutting and sizing axes, hydraulic workholding, precision blade guidance, and automatic lubrication give the NHC-130 the production hardware needed for recurring cutoff jobs.
NHC-130 Series (5.118 inch Cutting Capacity) Features:
With 5.118 inches of cutting capacity, the NISHIJIMAX NHC-130 saw can process a broader range of shafts, billet, tube, pipe, and forged blanks than the smaller NHC machines. It remains a dedicated high-speed circular saw, making it appropriate for repeat cutoff applications where part length, cut consistency, and throughput are more important than general-purpose sawing flexibility.
A servo-controlled sizing axis positions the material for each programmed cut while the cutting axis uses its own AC servo motor and ball screw. Separating those movements allows the Pat Mooney NHC-130 high speed production circular saw to control material position and blade feed as distinct parts of the automatic cycle.
Hydraulic clamping holds the workpiece as the blade moves through the section, while precision guides support the blade close to the cut. Powered tooth brushing and automatic lubrication help manage chips and friction over repeated cycles, supporting blade condition during longer production runs.
| Specification | Value |
| Cutting Capacity | 5.118 in (130 mm) maximum |
| Cutting Axis Drive | AC servo motor / ball screw |
| Sizer Axis Drive | AC servo motor / ball screw |
| Clamping | Hydraulic horizontal and vertical |
