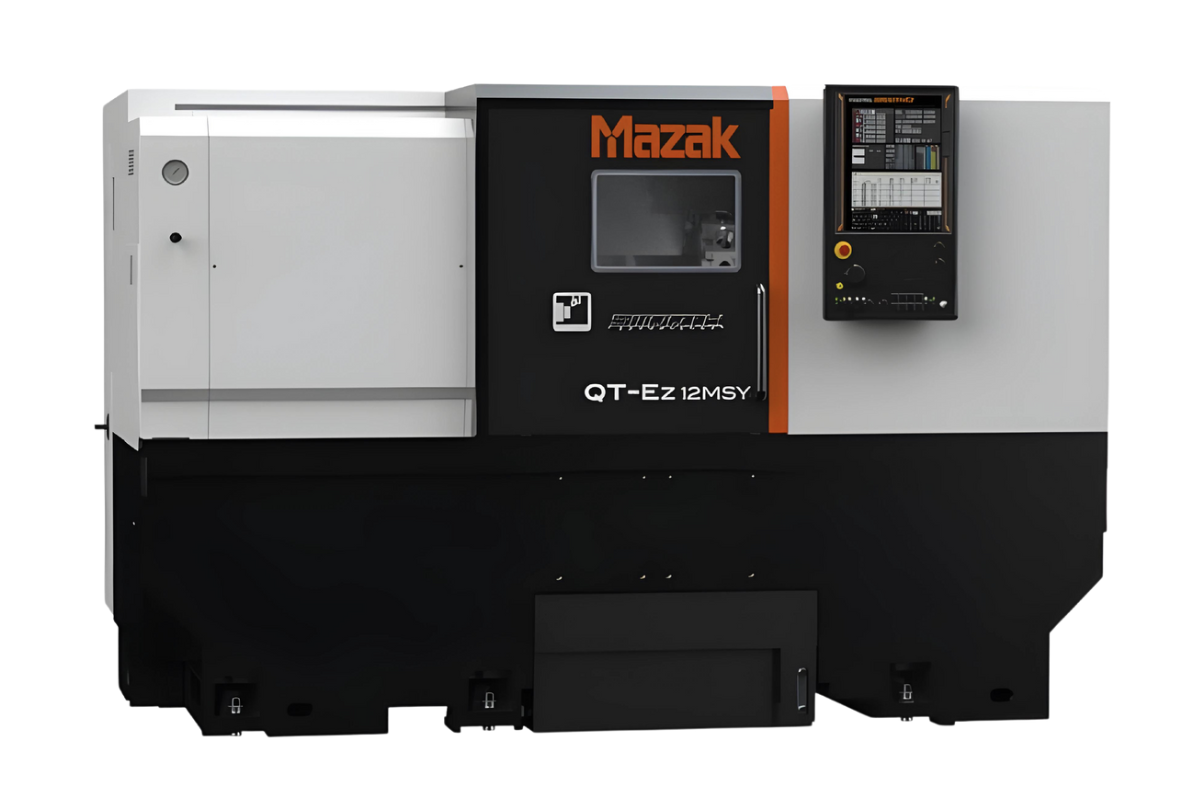

Mazak QT-Ez 12MY

QT-Ez 12MY

Maximizing Productivity with QT-Ez Series CNC Multi-Tasking Efficiency.

Constructed in Kentucky, the Mazak QT-Ez 12MY CNC turning center unlocks affordable access to reliability and groundbreaking innovation. Engineered with a compact design to seamlessly fit onto any shop floor, this machine is equipped with a 12″ chuck and an integral-motor turret spindle. As a result, it’s ideal for a wide range of materials and industries. It also has milling capabilities and Y-axis functionality to produce a variety of parts in a single setup for enhanced efficiency.

QT-Ez 12MY Features:

  • Powerful and reliable integral motor headstock designs.
  • Rotary tooling (M) and Y-axis off-centerline machining (Y) for Multi-Tasking processing.
  • Hybrid MX Roller Guide System improves rigidity, accuracy and reliability.
  • Pre-tensioned ball screw systems with support at each end.
  • 12 position drum turret (bolt on type) for rotary tool applications.
  • Tailstock options include a manual position with hydraulic quill or servo positioning capability.
  • Seamless integration of bar feeders and robots for unattended operations.

SPECIFICATION BED LENGTH – 20 IN
Capacity Maximum Swing 27.40 in / 695 mm
Maximum Machining Diameter 13.500 in / 343 mm
Maximum Bar Work Capacity 3.1 in / 80 mm
Maximum Machining Length 18.940 in / 479 mm
Main Spindle Chuck Size 12 in / 305 mm
Maximum Speed 3300 rpm
Motor Output (3 minute rating) 30.0 hp / 22 kw
Turret (Upper) Number of Tools 12
Maximum Speed 6000 rpm
Motor Output (3 minute rating) 10.0 hp / 8 kw
Feed Axes Travel (X Axis) 8.50 in / 215 mm
Travel (Y Axis) 4.00 in / 100 mm
Travel (Z Axis) 23.75 in / 605 mm

Categories: , Brand:

Description

Advanced Automation and Software Solutions on the QT-Ez 12MY

This automation-ready machine is designed for modern manufacturing workflows because it flawlessly integrates with bar feeders and robots. As a result, it facilitates lights-out production to keep operations running at peak efficiency. In addition, these Mazak QT-Ez advanced manufacturing solutions significantly increase output while maintaining the high quality standards. The MAZATROL SmoothEz CNC control system provides a comprehensive range of programming capabilities. This software includes MAZATROL conversational programming, and EIA/ISO compatibility. It also features QUICK MAZATROL to streamline part-program creation and MAZATROL TWINS to offer optional offline programming. The innovative software and automation implementation capabilities on the QT-Ez 12MY position it as a leader in Mazak’s multi-tasking CNC solutions. Between the robust design and 12 position drum turret, it’s ideal for rotary tool applications and versatile tailstock options. These solutions also provide machine shops with great operational flexibility and efficiency.



Securing Future Manufacturing Success

Investing in the QT-Ez 12MY is a strategic decision that goes beyond enhancing current machining capabilities. This machine will secure a competitive future for modern machine shops. It brings a new level of adaptability and precision into manufacturing processes to prepare them for this rapidly changing industry. By integrating the QT-Ez 12MY into your workflow, you ensure that your business stays ahead, ready to embrace technological advancements and maintain a competitive edge in the years to come. It’s an investment in enduring manufacturing excellence.



QT-Ez 12MY Demo
