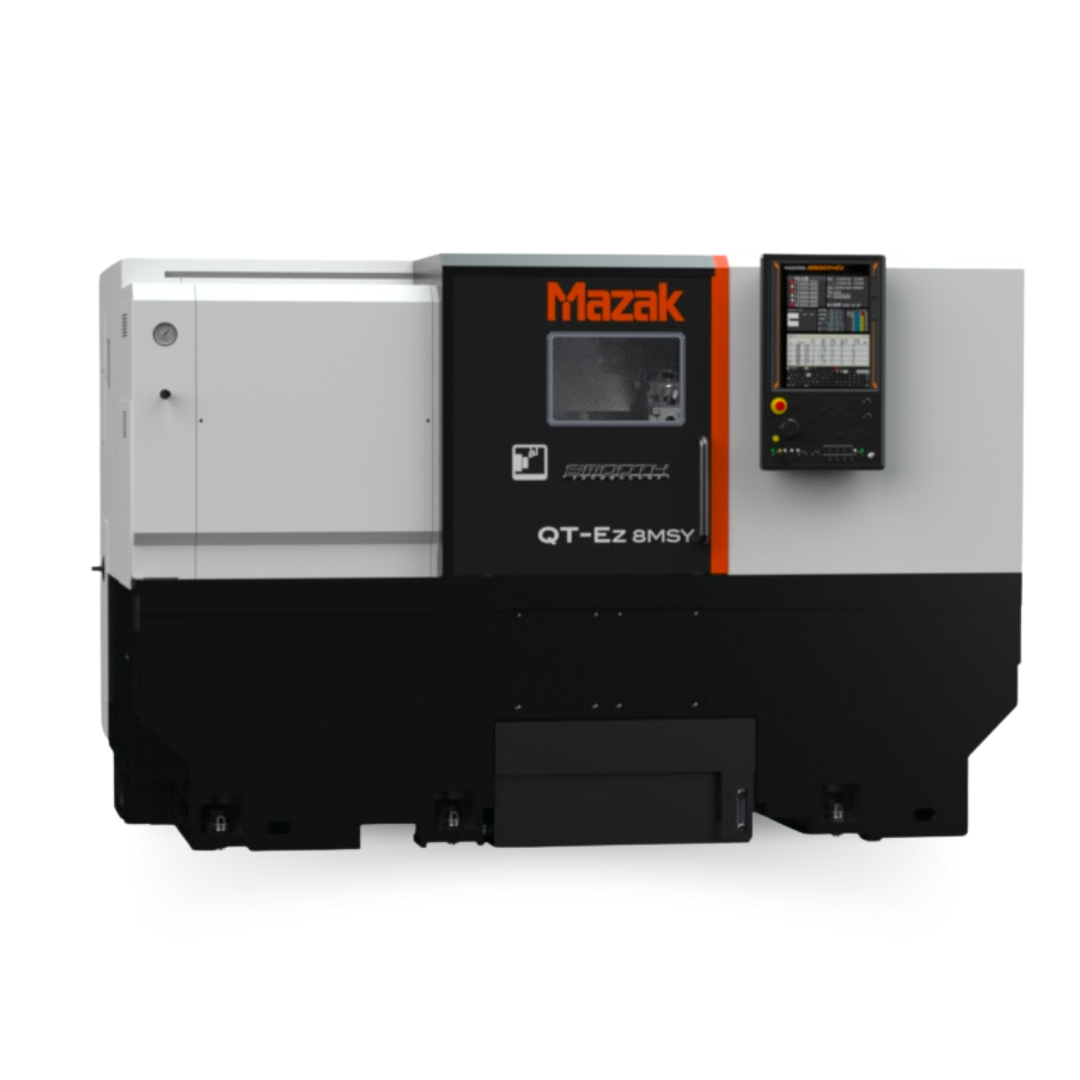

Mazak QT-Ez 8MSY

QT-Ez 8MSY

Revolutionizing Precision Machining

Crafted in Mazak’s Kentucky-based technological center, this multi-tasking CNC machine is designed to offer innovative and reliable versatility in a compact footprint. Equipped with an 8-inch chuck and integral-motor spindle, it adeptly manages a diverse range of materials across multiple industries. In addition, the milling capabilities, Y-axis functionality, and a secondary turning spindle enable comprehensive DONE IN ONE® operations for Mazak QT-Ez multi-tasking excellence.

QT-Ez 8MSY Features

  • Powerful and reliable integral motor headstock designs.
  • Rotary tooling (M) and Y-axis off-centerline machining (Y) for Multi-Tasking processing.
  • High-production second spindle (S) for DONE IN ONE part processing.
  • Hybrid MX Roller Guide System improves rigidity, accuracy and reliability.
  • Pre-tensioned ball screw systems with support at each end.
  • 12 position drum turret (bolt on type) for rotary tool applications.
  • Tailstock options include a manual position with hydraulic quill or servo positioning capability.
  • Seamless integration of bar feeders and robots for unattended operations.

SPECIFICATION BED LENGTH – 20 IN
Capacity Maximum Swing 27.40 in / 695 mm
Maximum Machining Diameter 13.500 in / 340 mm
Maximum Bar Work Capacity 2.0 in / 51 mm
Maximum Machining Length 22.400 in / 567 mm
Main Spindle Chuck Size 8 in / 203 mm
Maximum Speed 6000 rpm
Motor Output (4 minute rating) 20.0 hp / 15 kw
Second Spindle Chuck Size 5 in / 127 mm
Maximum Speed 6000 rpm
Motor Output (4 minute rating) 10.0 hp / 8 kw
Turret (Upper) Number of Tools 12
Maximum Speed 6000 rpm
Motor Output (3 minute rating) 7.5 hp / 5 kw
Feed Axes Travel (X Axis) 8.50 in / 216 mm
Travel (Y Axis) 4.00 in / 100 mm
Travel (Z Axis) 23.75 in / 605 mm
Travel (W Axis) 22.87 in / 580 mm

Categories: , Brand:

Description

MAZATROL software and Automation-Ready Solutions on the QT-Ez 8MSY

This innovative QT-Ez Mazak technology is is ready to integrate with bar feeders and robots for lights-out production. This capability enhances efficiency, and ensures consistent output, even when the shop floor is unmanned. The MAZATROL SmoothEz CNC technology suite includes MAZATROL conversational programming, EIA/ISO compatibility, and QUICK MAZATROL for simplified part-program creation. It also offers MAZATROL TWINS for optional offline programming. As a result, the QT-Ez 8MSY accelerates setup processes for rapid transitions between tasks with minimal downtime.



Precision Engineering and Optimized Performance

The machine’s pre-tensioned ball screw systems ensure precise movement with support at each end. In addition, the 12-position drum turret caters to rotary tool applications to enhance versatility. This machine is also highly flexible with various tailstock options, such as a manual position with a hydraulic quill or servo positioning capabilities, for a wide range of applications.



Uninterrupted Operations with Unmatched Reliability

The QT-Ez 8MSY SMOOTH Machining Configurator (SMC) and Intelligent Thermal Shield (ITS) optimize cutting parameters in real-time and manage thermal stability. This dual approach guarantees better reliability and part quality for Mazak QT-Ez multi-tasking excellence. Furthermore, its design for seamless integration with bar feeders and robots enables sustained, unattended operations, making it ideal for modern manufacturing environments.



QT-Ez 8MSY Demo
