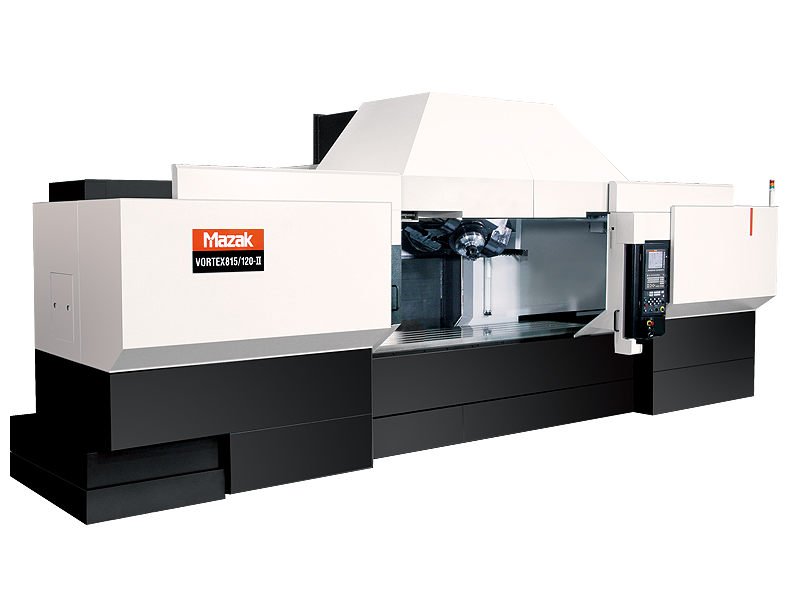

Mazak vortex-815/120-II 5 axis vertical machine

Vortex 815/120-II

Advanced Machining for Complex Parts

The Vortex 815/120-II is engineered to excel in the most challenging manufacturing environments. Its advanced tilt-rotary spindle, offering +/-40-degree motion, enables the machining of intricate geometries with unmatched precision. This feature, combined with the machine’s large table size, allows for processing big, complex workpieces typical in the aerospace industry, ensuring that every component meets the highest standards of quality and precision.

Vortex 815/120-II Features:

  • High speed, simultaneous 5-axis and multiple surface machining
  • Tilt-rotary spindle with +/-40-degree motion
  • Large table size
  • CAT 50-taper 10,000 rpm / 50 hp spindle
  • Tool storage capacities from 30 to 60 tools available
  • Two-pallet changing
SPECIFICATION VALUES
Spindle Spindle Taper BT50
Maximum Speed 10000 rpm
Magazine Number of Tools 30
Rotary Axes Table Tilt (A axis) 80 degrees
Spindle Tilt (B axis) 80 degrees
Feed Axes Travel (X Axis) 120.00 in / 3048 mm
Travel (Y Axis) 31.89 in / 810 mm
Travel (Z Axis) 24.02 in / 610 mm

Category: Brand:

Description

Redefining Aerospace Manufacturing with the Vortex 815/120-II 5-Axis VMC

The Mazak Vortex 815/120-II is designed to meet the complex needs of aerospace manufacturing and beyond. This 5-axis vertical machining solution is capable of high-speed, simultaneous 5-axis, and multiple surface machining. As a result, it elevates efficiency and precision standards for the entire CNC shop. For example, the high-performance CAT 50-taper spindle reaches speeds of up to 10,000 rpm with a power output of 50 hp. This ensures efficient material removal, optimal cycle times, and exceptional surface finishes, making it suitable for a wide range of materials and applications.



Versatile Tool Storage and Pallet Changing

To support its versatile machining capabilities, this Mazak 5-Axis machining center has tool storage capacities ranging from 30 to 60 tools, catering to diverse production requirements. In addition, the two-pallet changing system enhances the machine’s productivity even further. This feature allows for quick setup changes and continuous operation for efficient project management.



Unleash Productivity with Mazak’s 5-Axis VMC

Mazak’s commitment to innovation and excellence is imperative in this vertical 5-axis machining center. By providing essential tools to tackle complex geometries and push innovation, it truly excels in aerospace manufacturing and precision engineering. Embrace the future of manufacturing with the Vortex 815/120-II and experience a new level of productivity and precision.
