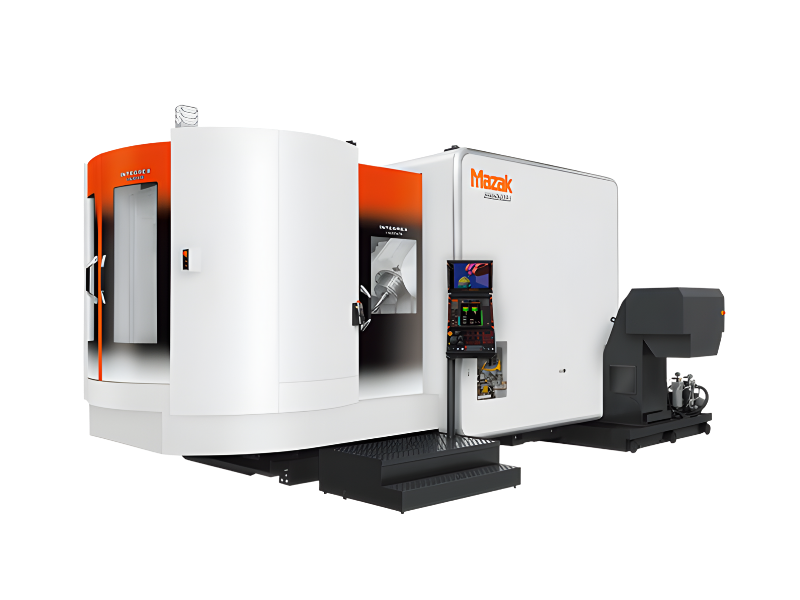

The Mazak Integrex i-500V is a high-performance multitasking machine designed for complex part production. Ideal for shops seeking a reliable CNC machining center, it combines 5-axis machining with advanced automation capabilities to streamline operations and boost output.
Integrex i-500V Features:
| Model | INTEGREX i-500V/5 |
|---|---|
| Tool shank | 40 |
| Max. workpiece size | 28.74 × 39.37 |
| Max Workpiece Diameter | 28.74" |
| Max Machining Length | 39.37" |
| Chuck Size |
$1.00
The Mazak Integrex i-500V delivers powerful multitasking capability by combining turning, milling, and drilling operations in one machine. Its orthogonal design and rigid construction ensure accuracy across complex part geometries. In addition, the B-axis roller gear cam and C-axis disc brake provide precise, backlash-free indexing. Built as a vertically oriented CNC machining center, it uses linear roller guides on every axis to maintain stability during high-speed cutting. This makes it ideal for high-mix, low-volume environments where flexibility and repeatability are critical.
The Integrex i-500V features a high-output, high-torque integral spindle/motor. The standard No.40 taper spindle operates at 12,000 rpm, with options for a 20,000 rpm high-speed spindle or a No.50 taper for heavy-duty cutting. In addition, tool magazine capacity ranges from 40 to 240 tools, supporting diverse production needs. A two-pallet changer allows for continuous operation, enabling one pallet to be loaded while the other is machining. As a Mazak machine dealer solution, this model integrates seamlessly with Mazak’s Palletech system for scalable, automated manufacturing cells.
At the core of the Integrex i-500V is the Mazatrol SmoothAi CNC control. This advanced system applies artificial intelligence, real-time diagnostics, and digital twin simulation to improve cycle times and surface finishes. In addition, Solid Mazatrol enables automatic programming, while Cutting Advisor optimizes parameters for consistent results. Together, these features streamline production, reduce setup time, and give machinists greater control. In conclusion, the Integrex i-500V offers exceptional multitasking capability, automation readiness, and intelligent control—making it one of the most advanced CNC machining centers available.
| Model | INTEGREX i-500V/5 |
|---|---|
| Tool shank | 40 |
| Max. workpiece size | 28.74 × 39.37 |
| Max Workpiece Diameter | 28.74" |
| Max Machining Length | 39.37" |
| Chuck Size |
| Capacity | Max. machining diameter | Φ29″ |
|---|---|---|
| Max. workpiece size | Φ29″ × 39″ | |
| Table load capacity (evenly distributed) (including pallet) | 1940 lbs | |
| Table | Max. spindle speed | 1000 rpm |
| Max. torque (15 min. rating) | 1000 N･m | |
| Max. torque (cont. rating) | 706 N･m | |
| Spindle motor (15 min. rating) | 22 kW (30 HP) | |
| Spindle motor (cont. rating) | 18.5 kW (25 HP) | |
| Rapid traverse rate (C-axis) | 100 rpm | |
| Min. indexing angle increment (C-axis) | 0.0001° | |
| Milling spindle | Max. spindle speed | 12000 rpm |
| Max. torque (15 min. rating) | 272 N･m | |
| Max. torque (cont. rating) | 130.2 N･m | |
| Spindle motor (15 min. rating) | 22 kW (30 HP) | |
| Spindle motor (cont. rating) | 18.5 kW (25 HP) | |
| Rapid traverse rate (B-axis) | 50 rpm | |
| Min. indexing angle increment (B-axis) | 0.0001° | |
| Automatic tool changer | Tool shank | CAT No.40 |
| Tool storage capacity | 40 | |
| Max. tool diameter | Φ4″ | |
| Max. tool diameter (without adjacent tool) | Φ6″ | |
| Max. tool length (from gauge line) | 16″ | |
| Max. tool weight | 26 lbs | |
| Travel | X-axis | 43″ |
| Y-axis | 32″ | |
| Z-axis | 35″ | |
| B-axis | 150° | |
| C-axis | 360° | |
| Rapid traverse rate | X-axis | 1969 IPM |
| Y-axis | 1969 IPM | |
| Z-axis | 1969 IPM | |
| Machine size | Machine width × length | 150″ × 295″ |
| Machine height | 137″ | |
| Machine weight | 50705 lbs |
