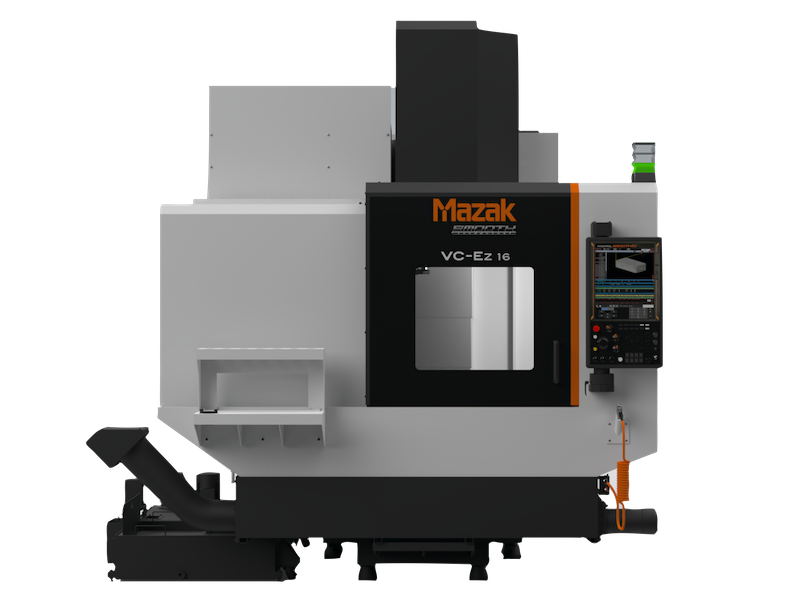

VC-Ez 16

Introducing A New Era of Vertical Machining

Manufactured in Kentucky, this Mazak vertical machining center redefines quality and reliability for machine shops of all sizes. Equipped with a versatile range of spindles, auto tool changers, and chip/coolant management options, the VC-Ez 16 is a highly adaptable machine that caters to a wide spectrum of production requirements. It’s also an affordable machining center at an affordable cost, making it ideal for a wide range of machine shops.

VC-Ez 16 Features:

  • Rugged 25 hp, 12,000 rpm (standard) or versatile 29.5 hp, 15,000 rpm (optional) spindle
  • Highly efficient 30-tool auto tool changer (50-tool option).
  • Hybrid MX Roller Guide System improves rigidity, accuracy and reliability.
  • Pre-tensioned ball screw system with support at each end.
  • New space-saving machine design with optional chip management solutions.
SPECIFICATION VALUES
Capacity Table Right/Left 37.400 in / 950 mm
Table Longitudinal 14.170 in / 360 mm
Spindle Spindle Taper CAT-40
Maximum Speed 12000 rpm
Motor Output (5 minute rating) 25.0 hp / 18 kw
Magazine Number of Tools 30
Feed Axes Travel (X Axis) 30.00 in / 762 mm
Travel (Y Axis) 16.14 in / 410 mm
Travel (Z Axis) 20.08 in / 510 mm



Category: Brand:

Description

Enhanced Productivity and Ergonomics on the VC-Ez 16

The efficient Mazak VC-Ez series vertical centers feature an ergonomic design and spacious work area to simplify the loading and unloading process for workpieces and tools. In addition, they have an impressively fast traverse rate of 1,417 ipm across the X, Y, and Z axes, to drive higher throughput, and significantly reduce cycle times. As a result, machine shops can achieve more in less time with unparalleled efficiency.



Precision Control with MAZATROL SmoothEz CNC

The MAZATROL SmoothEz CNC system on the advanced vertical machining with VC-Ez series offers an extensive range of programming capabilities. For example, it includes intuitive MAZATROL conversational programming and EIA/ISO compatibility. It also features QUICK MAZATROL and MAZATROL TWINS to enhance the programming experience, and provide easy part-program creation and optional offline part programming.



Cutting-Edge Machine Features for Optimal Performance

These Mazak VC-Ez vertical milling solutions are equipped with a standard 25 hp, 12,000 rpm spindle. If needed, a 29.5 hp, 15,000 rpm spindle is available for better versatility. In addition, they feature a highly efficient 30-tool auto tool changer, with an optional expansion to 50-tools. As a result, they’re capable of machining parts for a wide range of complex applications with precision and efficiency. The Mazak VC-Ez 16 is a strategic investment to enhance operational efficiency, precision, and versatility. It’s been strategically designed to meet the challenges of modern manufacturing to ensure machine shops remain competitive in an ever-evolving industry.



VC-Ez 16 Demo
